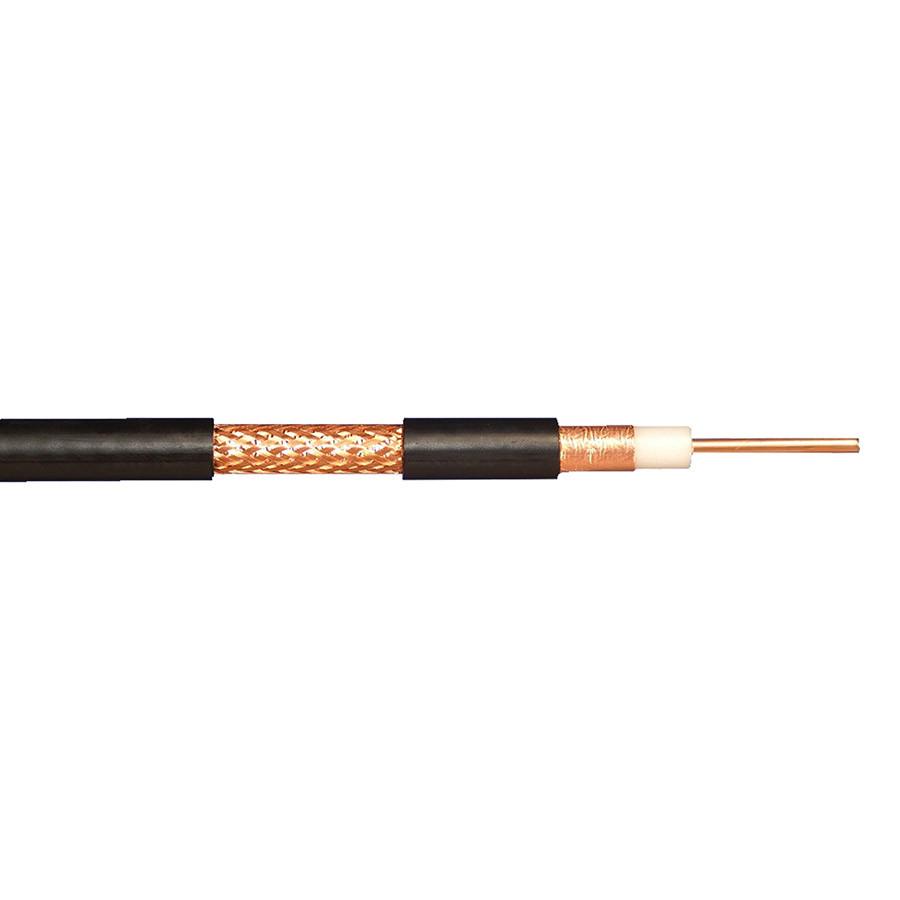

Rf10 F 50Ohm Coaxial Cable

High-class professional coaxial cable with an impedance of 50 Ohm in a polyethylene sheath, intended for radio communication applications, data transmission via radio (e.g. WLAN 2.4 GHz) and other similar applications, for operation in transmitting and receiving installations. Technical data of Satec RF-10F cable Inner conductor: Copper wire (Cu) diameter Ø 2.71 mm Dielectric: Physically foamed PE, diameter Ø 7.25 mm Screen (outer conductor): Copper foil (Cu-PET) + 54% copper wire braiding (Cu) Outer sheath: PE, total diameter Ø 10.3 mm, color black (RAL 9005) Minimum bending radius without load 55 mm with load 110 mm Temperature range during operation -40° C to + 85° C during installation -15° C to + 55° C Resistance to direct current (DC) inner conductor 3.1 Ohm/km outer conductor (shielding) 9.5 Ohm/km Capacitance at 800 Hz: 79 nF/km Shortening factor: 84 % Characteristic impedance at 200 MHz: 50 Ohm ± 2 Ohm Transfer impedance 1 MHz < 5 mOhm/m 10 MHz < 4 mOhm/m 30 MHz < 2 mOhm/m Working voltage ( AC ): 1.2 kV rms Test voltage ( AC ) inner conductor / shield: 3.0 kVrms Outer sheath breakdown test ( rms ): 5.0 kV Screening effectiveness 100-1000 MHz ≥ 90 dB Insulation resistance ( 500 V ) ≥ 10 GOhm*km Satec RF-10F Electrical Parameters: Frequency (MHz) / Insertion Loss (dB/100m) / Maximum Power Rating (watts) 10 MHz / 1.2dB / 8500W 100 MHz / 3.7dB / 2645W 500 MHz / 8.7dB / 1120W 800 MHz / 11.3dB / 890W 1000MHz / 12.8dB / 794W 2000MHz / 18.9dB / 530W 2500MHz / 21.4dB / 475W 5400MHz / 34.2dB / 323W 5600MHz / 34.8dB / 317W 5800MHz / 35.4dB / 311W Physical Specifications Satec RF-10F Product name: RF-10 F Satec Designation: Satec 2.7/7.3 F Outer diameter: 10.3 mm Cable weight: 116.7 kg/km Copper content: 81.6 kg/km Max. tensile force: 385 N
