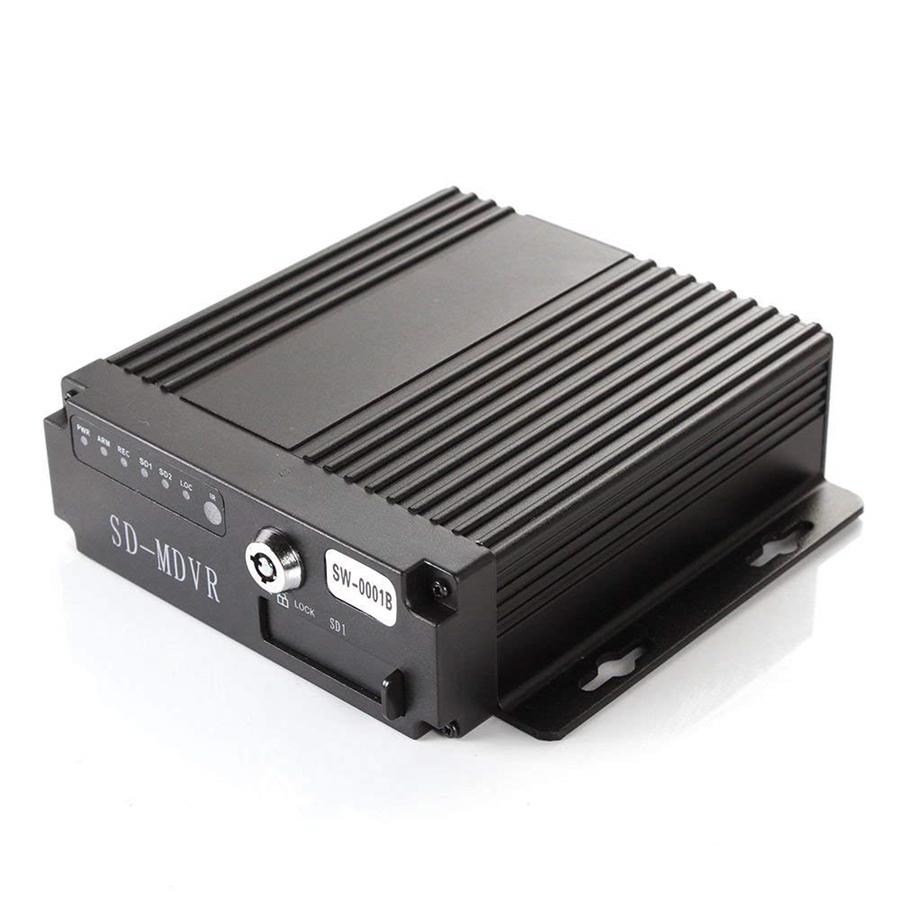

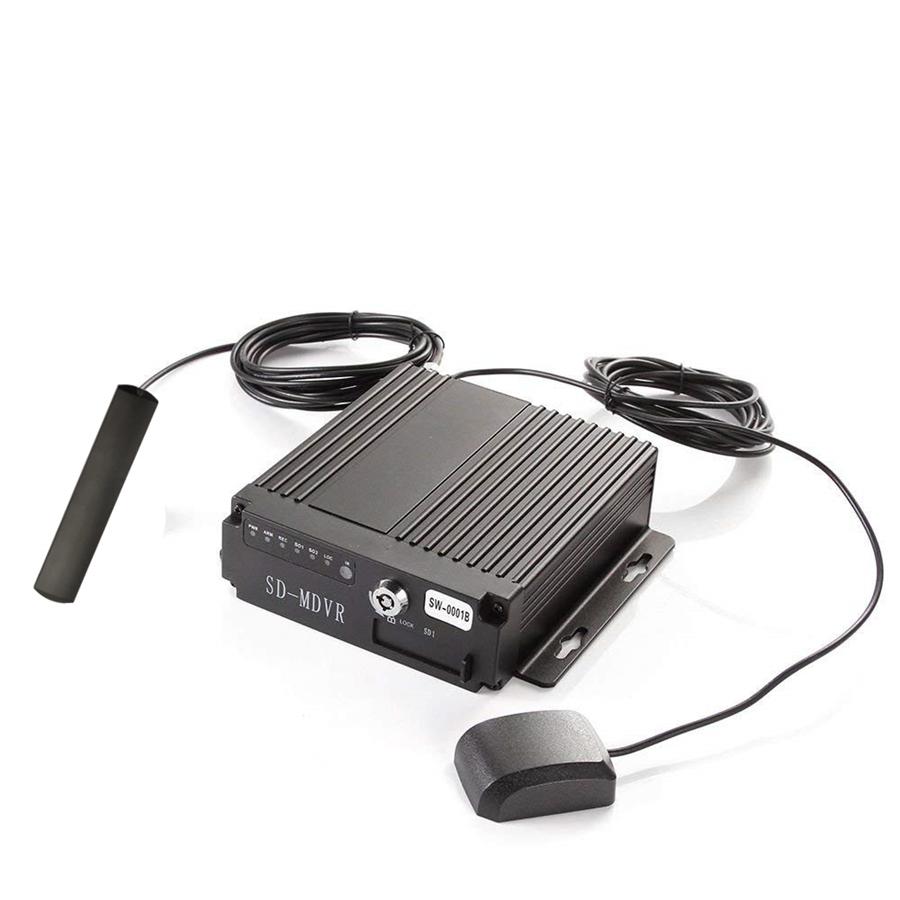

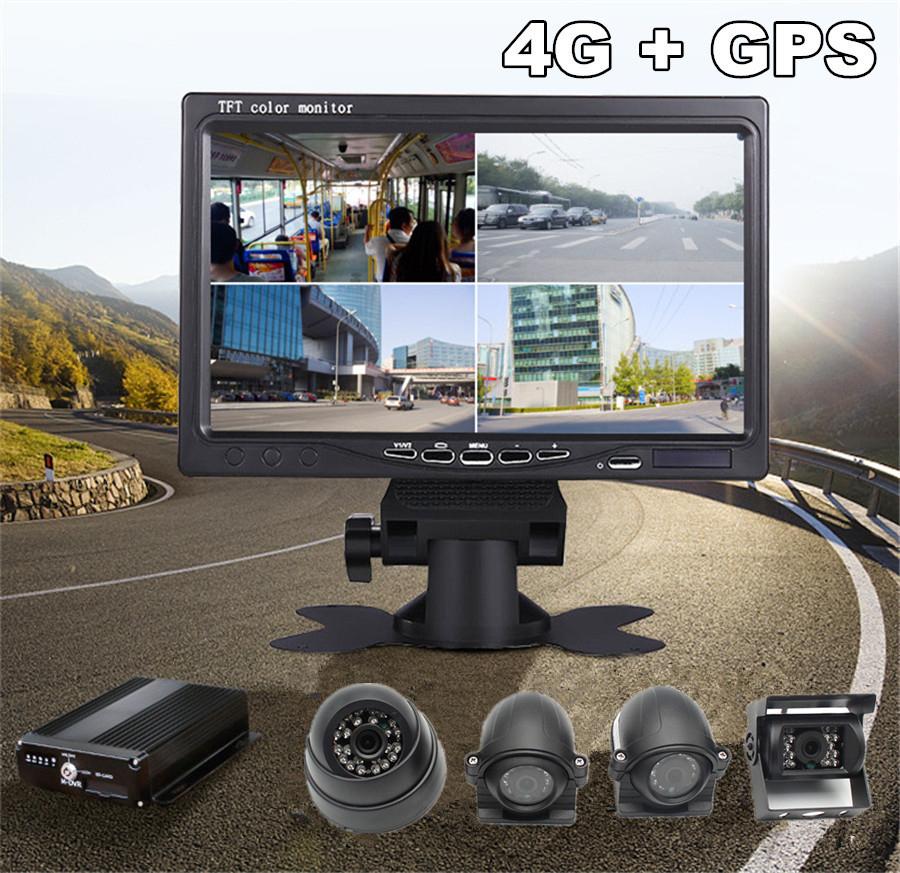

720P 4Ch Car Bus Dvr 4G Wireless Gps Realtime Video Recorder Box + 4X Ccd Camera

Car Dvr:

Description: It Is An Integration Of "4 Monitoring And Recording", "Million Pixels Digital & Analog Mixed Car Dvr" And "Wireless Data Transmission". This 4-Channel Car Video Recorder Assists You In Recording Driving Route, License Numbers, The Situation That Passengers Get On Or Off The Car And What Happened When You'Re Not In The Car. Adopting High Grade Industry Standard And Designed According To The Various Operating Environment In Different Cars, Our 4-Channel Car Video Recorder Is Featured With Diversified Recording Modes, Compact Size, Easy Installation, Shock & Heat Resistance And Stable Performance. A Helpful Companion For All Car Owners! Features: No-Seam Recording Technology. Compression Mode. Support 4Ch Real-Time 720P Million Pixels Ahd Input And Analog Standard Definition Camera Input, Or 2Ch Hd Input + 2Ch Sd Input. Exclusive Pre-Allocate Dvr Special File Dystem Technology. Solving Repeatedly Wipe Cause File Fragmentation, Solving Sd Card File System Collapse, Data Loss And Cannot Find Sd Card And File Garbled, Ensure The Integrity Of The Data. Support Gps/Bd/G-Sensor. Sd Card Storage Maximum Up To 128Gb. Support Ir Remote Control. Special Design Of Encryption To Protect Recording Files. Support Wide Range Of Voltage Input From 8V To 33V. It Can Be Completely Resist Car Vibration, Dust And Other Cause Data Corruption. High Reliability Aviation Plugs. Simple And Clear Operation Menu. Specifications: General Compatible With: Apply To All Kinds Of Cars Operating Language: Chinese/English Voltage: 8-36V Dc Power Output: 12V Working Temperature: -40℃-80℃ Account: Bsa3066 Password: 000000 Pixels: 130 Megapixels Front Panel Features:

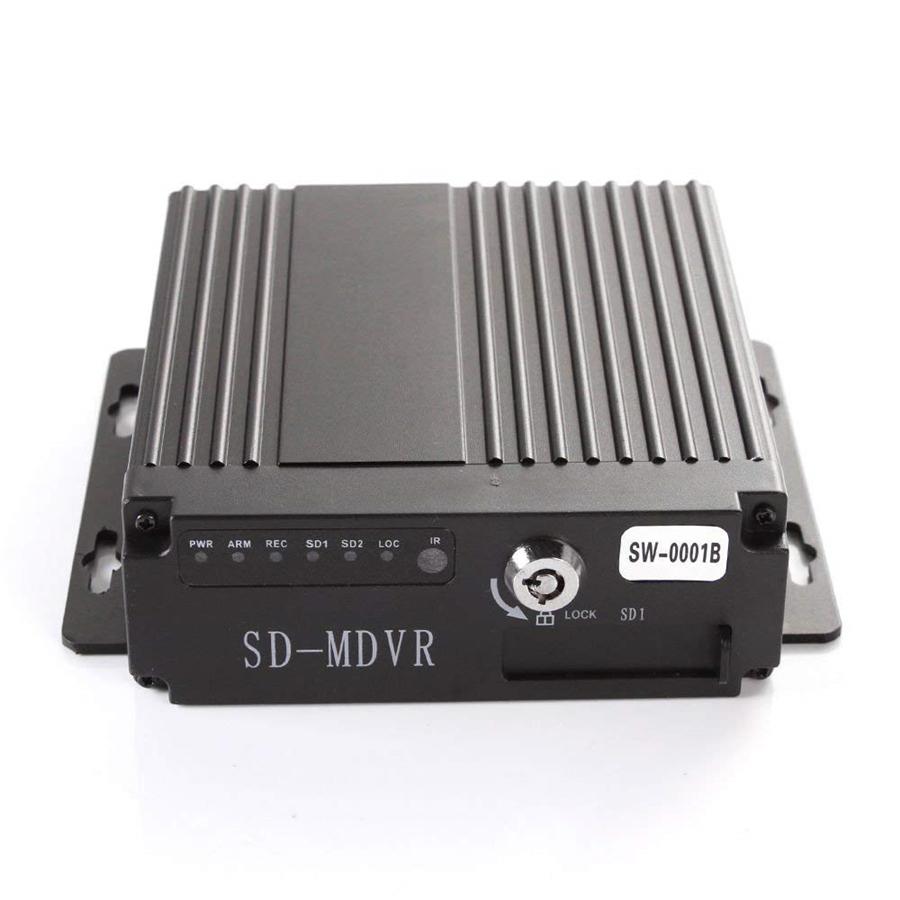

No.

Name

Board

Details

1

Indicatorlight

Pwr

Power Light, Lights When The Power Supply Is Normal

Arm

Alarm Indicator Lights When An Exception Occurs When The Machine

Rec

When Recording Indicator Lights When The Device Is Recording

Sd1

Sd Card 1 Indicator Lights, When Sd Card 1 Exist,It Will Light.

Sd2

Sd Card 2 Indicator Lights, When Sd Card 2 Exist,It Will Light.

Lock

Electronic Lock Indicator Light, Electronic Lock Open When Bright.

2

Remote Control

Ir

Infrared Receiver, Used To Receive Remote Control Signal

3

Electronic Lock

Lock

Lock The Electronic Lock, The Device Can Boot, Electronic Lock Open, It Will Shut Down

4

Sd Card Connector

Sd

When The Electronic Lock Is Open, You Can Open The Sd Card Interface Baffle, According To The Machine Model, You Can Insert 1 Or 2 Sd Card, Or Sim Card, Electronic Lock, Do Not Force Open Sd Card Interface Baffle, Otherwise Damage The Machine.

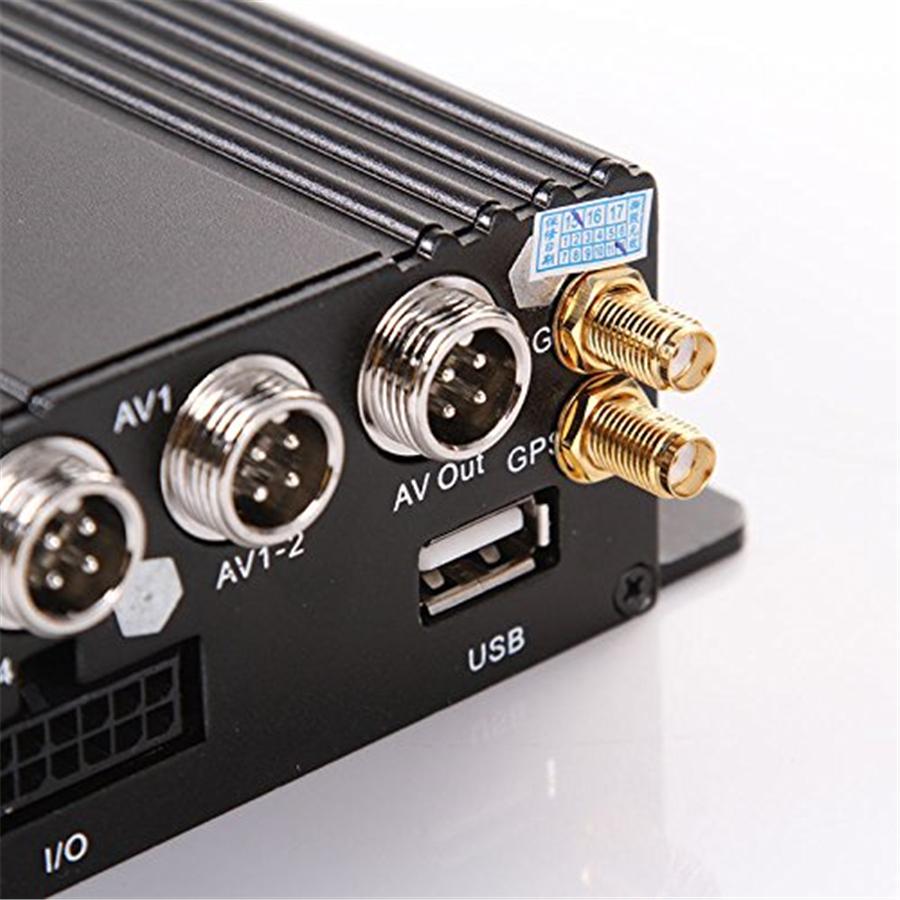

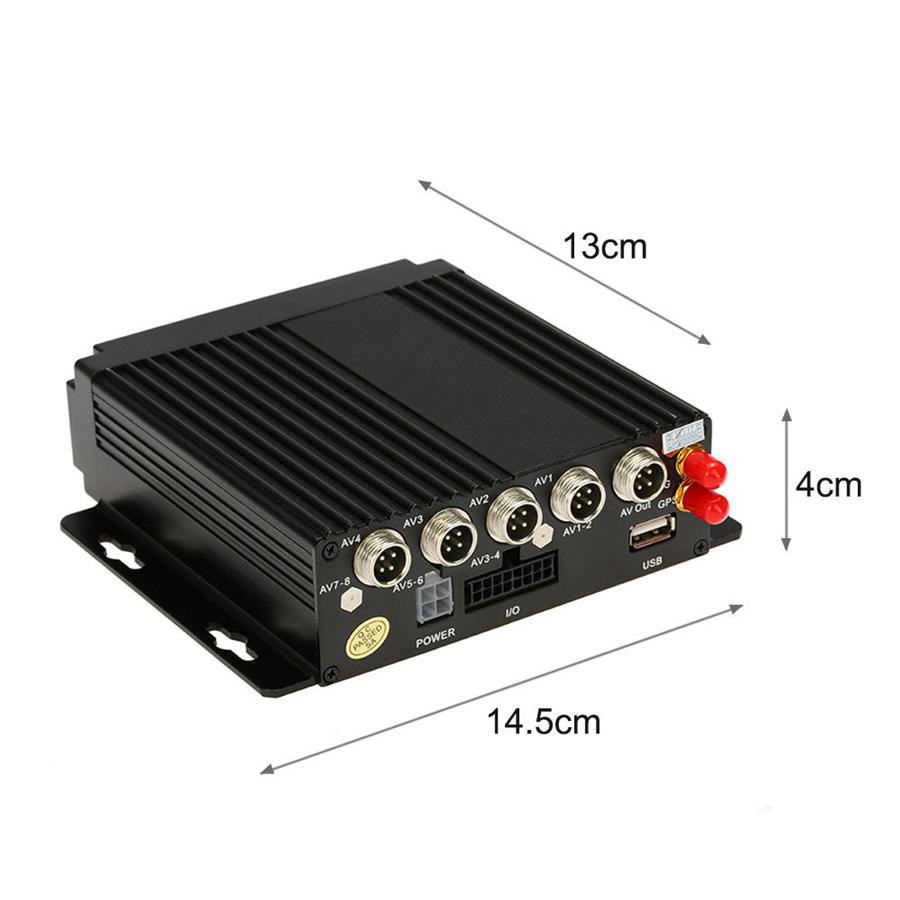

Rear Panel Interface Description:

1

o & Video Inputinterface

Av1

First Channel o, Video Input Interface

Av2

Second Channel o, Video Input Interface

Av3

Third  Channel o, Video Input Interface

Av4

Fourth Channel o, Video Input Interface

2

o & Video Output Interface

Av Out

o, Video Analog Signal Output Interface

3

3G / 4G Antenna Interface

4G

3G / 4G Network Antenna Interface, External 4G Dedicated Antenna, 4G Antenna To Be Placed In The Absence Of Shielding, No Interference.(Lte:Fdd,2100(B1)/1900(B2); Wcdma:2100(B1)/1900(B2)850(B5); Gsm:1900(B2)/850(B5))

4

I / O Interface

Sensor

Alarm Input, Alarm Output, 232,485 And Other Signal Interface, The Specific Definition Of Reference 1.6.4 Section

5

Usb Interface

Usb

Usb Interface (Some Models This Function Is Valid)

6

Power Interface

Power

Power Input Interface

7

Gps Antenna Interface

Gps

Gps Antenna Interface, External Gps Dedicated Antenna, Gps Antenna To Be Placed In The Unshielded, Non-Interference Areas. (Note: Only With Gps / Beidou Models Have The Interface)

Video: Video Compression: H.264 Video Input: 4Ch Video Output: 1Ch Video Standard: Pal, Ntsc, Cif, Hd1, D1, 720P Video Quality: 0-7 Levels, 0 Is The Highest Level, 7 Is The Lowest Level Resolution: 720P/D1/Hd1/Cif, Max: 4 Channels Of 720P Preview: Support 1 Channel And 4 Channels Preview, Support Manual/Alarm Trigger Full Screen Preview Record Mode: Auto / Timed / Alarm Trigger / Manual Recording o: o Compression: G.726 Compression, 8Kb/S Speed o Input: 4Ch, Aviation Plug o Output: 2Ch, Front Port Is Earphone Port, Rear Port Connects To Bnc Connector Output Level: 1V - 2V Build-In：

Wireless Transfer: Built-In 3G/4G Network

Remarks: Before You Place The Order, Please Kindly Check Whether Your Local Sim Card Network Is Below Bands Or Not:

(4G/Lte:Fdd,2100(B1)/1900(B2); 3G/Wcdma:2100(B1)/1900(B2)850(B5); 2G/Gsm:1900(B2)/850(B5)) Position: Built-In Gps/Bd Module G-Sensor: Support Voltage & Power Consumption Voltage Input: 8V-33V Voltage Output: 12V/2A Power Consumption: Normal Working<5W, Stand-By Status<0.5W

Camera Specification:

Power Voltage:Dc 9V-26V

Image Sensor: 1/3" Ccd Sony Camera .

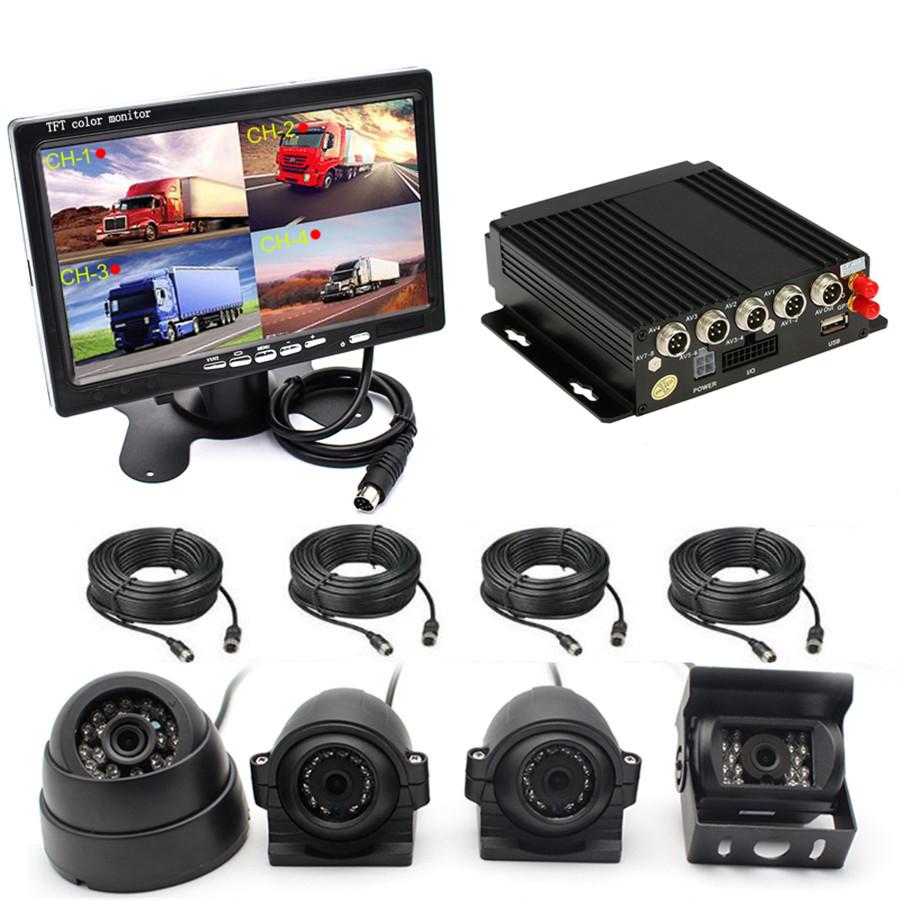

Scanning System: Pal/Ntsc  Night Vision:Support(With Led) Effective Pixels: 1280X720 Pixels   Resolution: 960 Tv Line   Video Output: Cvbs 1.0Vp.P.75Ohm   Agc: Autos/N Ratio: Better Than 48Db   Electronic Shutter: 1/60~1/100.000 Seconds   Operation Temperature: -40°C~80°C Rh95% Max/-10°C~50°C Rh95% Max   Storage Temperature: -40°C~105°C Rh95% Max/-20°C~60°C Rh95% Max   Waterproof Grade: Ip 68  Car Monitors: Screen Size:7 Inch Display Format:16:9   Contrast: 500:1, Resolution: 800*480   Power Voltage:12V-30V Dc, Power Consumption;<=6W   Item Type:Parking Assistance Monitor .   Operate System:Pal/Ntsc   Video Input: V1/V2.Auto Switch   Operating Voltage:Dc 9V-26V Package Include: 1 X Host

1 X Mnitor

4 X Camera 4 X Camera Extension Cord(3*5M+1*20M) 1 X Recorder Power Cable

1 X Monitor Power Cable

1 X o /Video Output Cable 2 X Key 1 X Recorder Remote Control

1 X Monitor Remote Control

1 X Monitor Bracket

1 X Manual 1 X Gps Antenna 1 X 4G Antenna Notice:

If You Buy More Than One This Device To Install On More Than One Vehicle, And Want To Manage These Vehicles At The Same Time, Please Send Us The Number Of All The Devic
