- EMC EMI Field Probe Accessories Range 9KHz-7GHz Accessory DIY Parts

Name: - EMC EMI Field Probe Accessories Range 9KHz-7GHz Accessory DIY Parts
SKU: 6965fe4ecda80701a596fa3d
Price: 1376 TRY
Availability: InStock

Güncel Fiyat

Fiyat ₺1.376

Renk ve bedenStyle 6 – görseldeki gibi

🇹🇷 Türkiye'nin her yerine teslimat

Sipariş başına 11–33 iş günü · ₺213

Ödemeleriniz ve gizliliğiniz güvende

Teslim edilmediğinde para iadesi

Kalite güvencesi

Güvenli lojistik

Gizlilik koruması

Açıklama

Description:

- Magnetic field probes for large, medium, small and electric field probes are mainly used for EMI space radiation rectification.

- Mainly used for magnetic field radiation testing. Probes that can identify the direction of the magnetic field.

- The type II magnetic field probe adopts a semi-shielded structure. Three sides of the magnetic field induction coil are shielded with copper skin, and one side is exposed to the air.

- Operating bandwidth of large, medium and small magnetic probes: 1MHZ-7ghz

- Measured frequency response diagram (large, medium and small) (1MHZ-7ghz)

Specification:

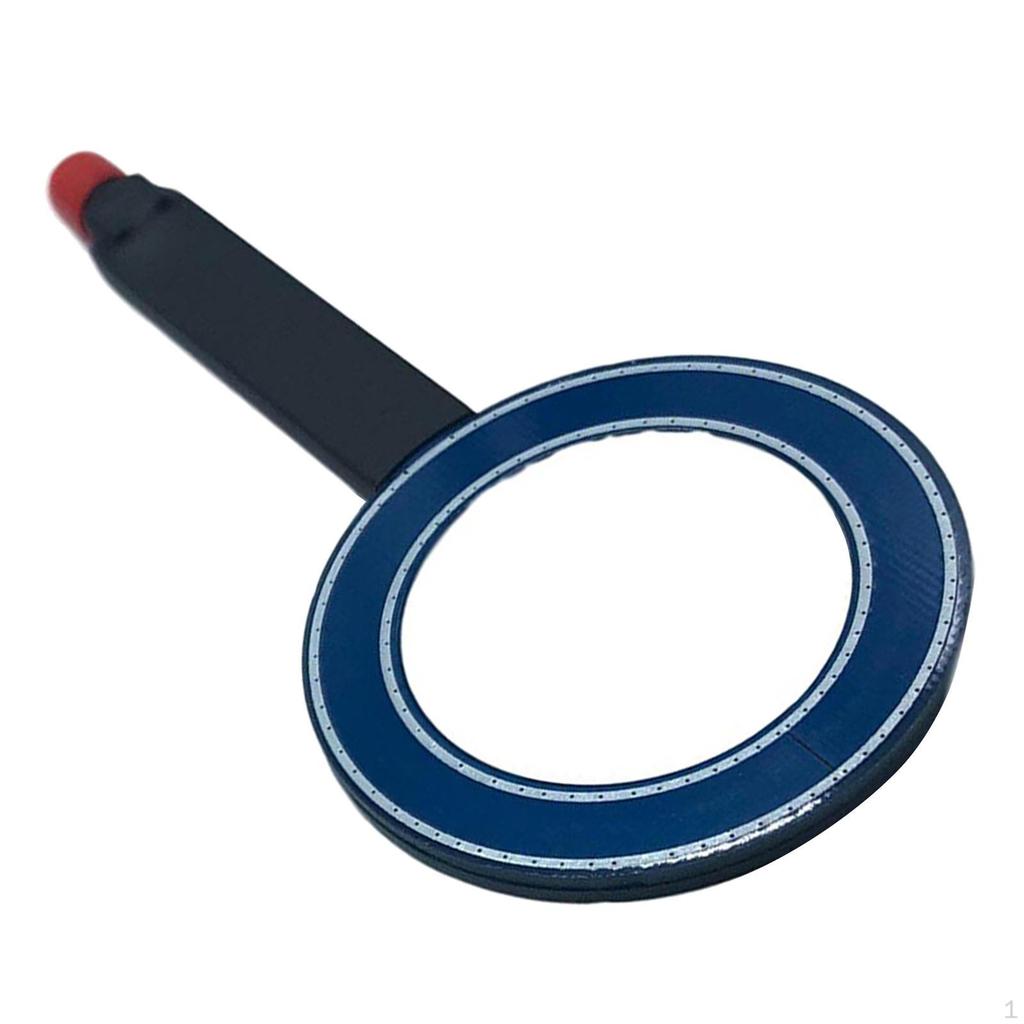

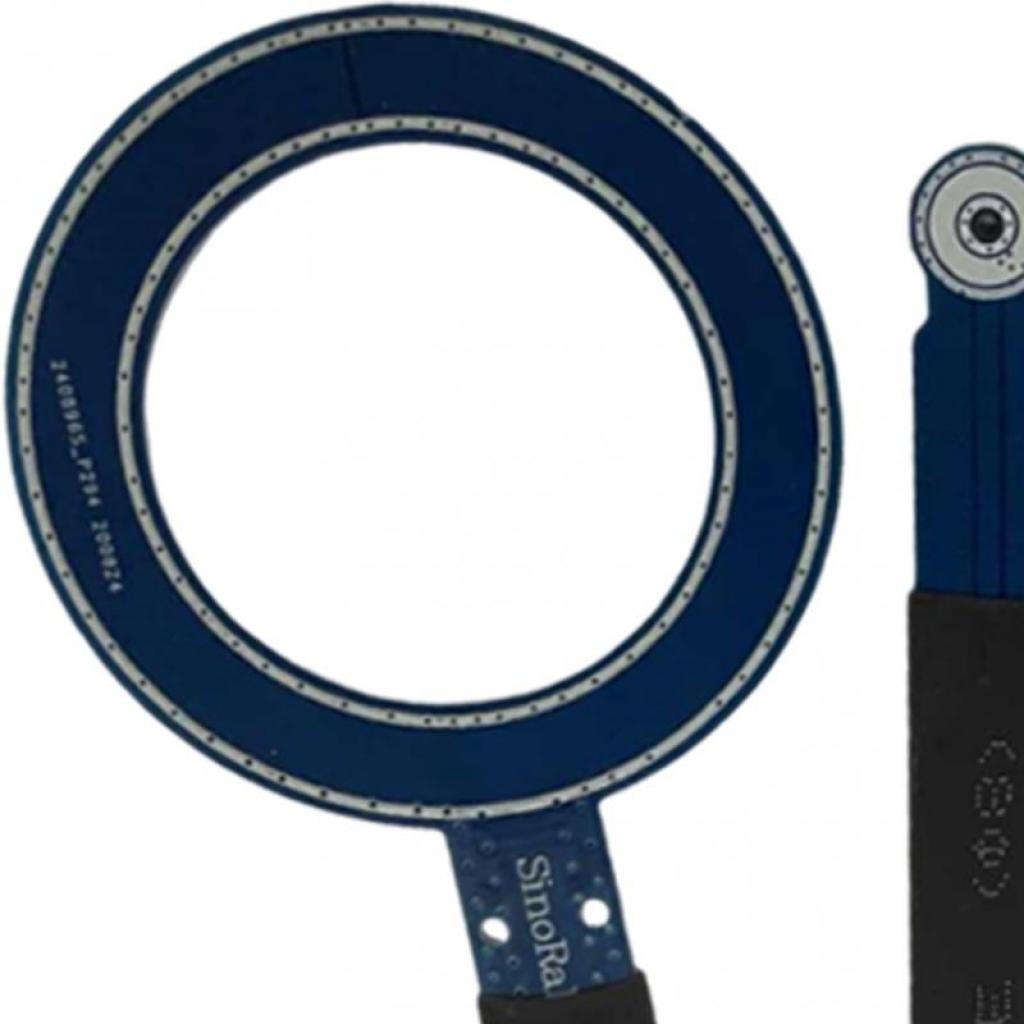

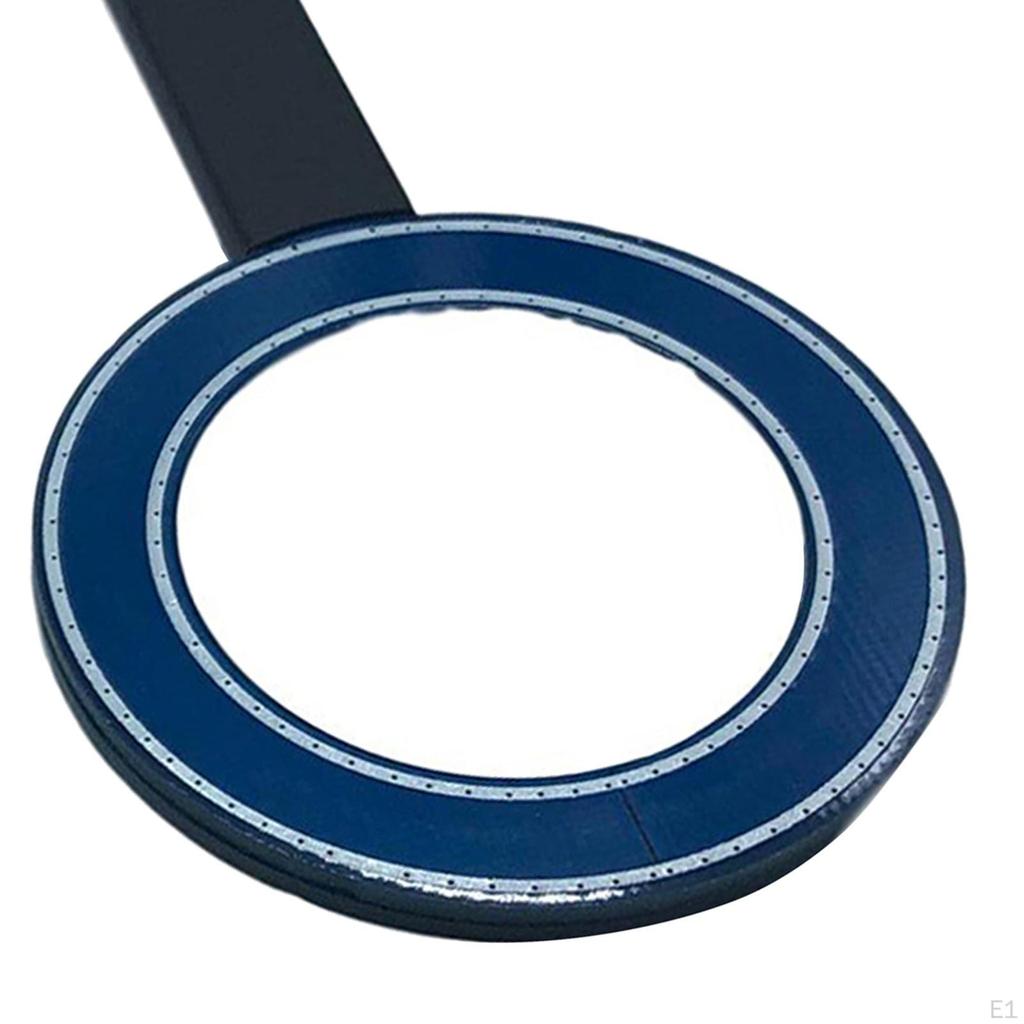

- Style 1 Extra large (type II): handle thickness is about 2.3mm, probe width is about 5.5cm, total length is about 10cm.

- Style 2 Large size (type II): handle thickness is about 2.3mm, probe width is about 2.5cm, total length is about 10cm.

- Style 3 Medium size (type II): handle thickness is about 2.3mm, probe contour width is about 1.6cm, total length is about 10cm.

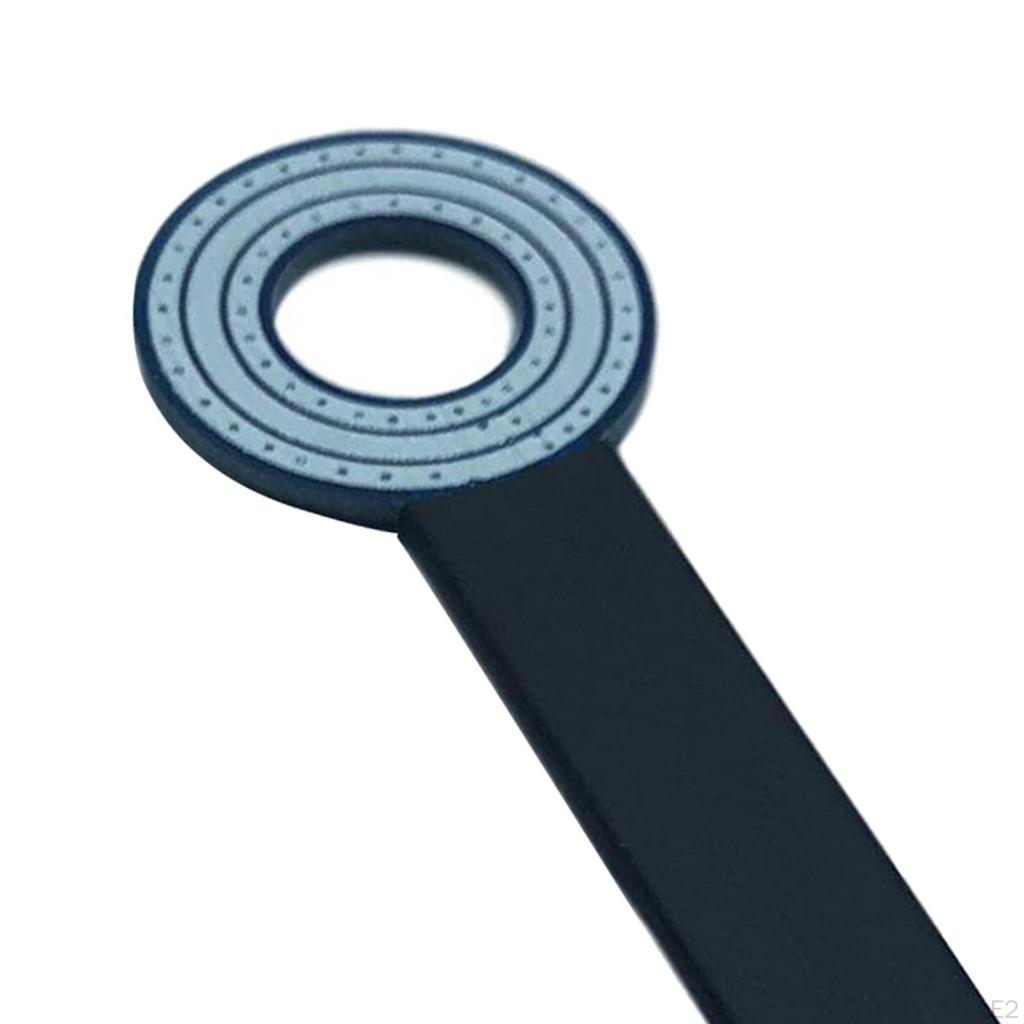

- Style 4 Small size (type II): handle thickness is about 2.3mm, probe contour width is about 1.0cm, total length is about 10cm.

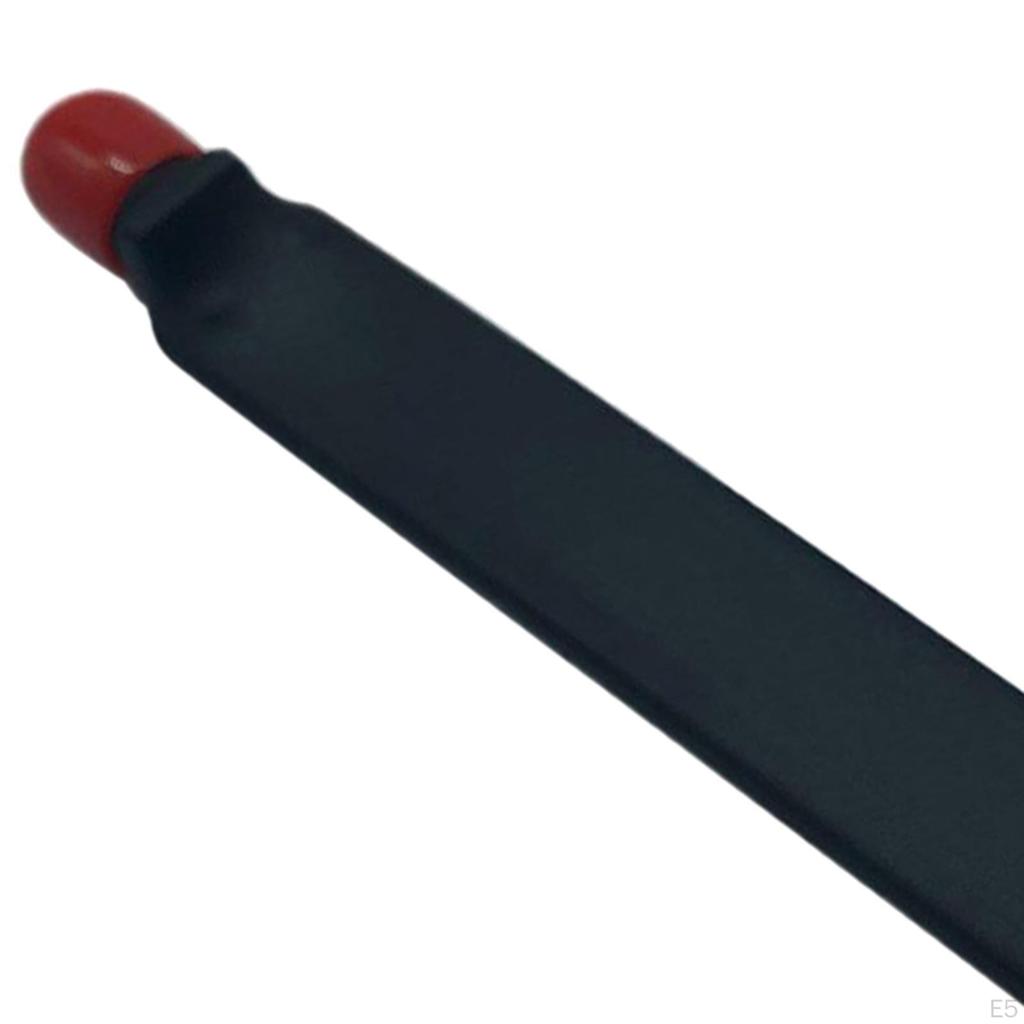

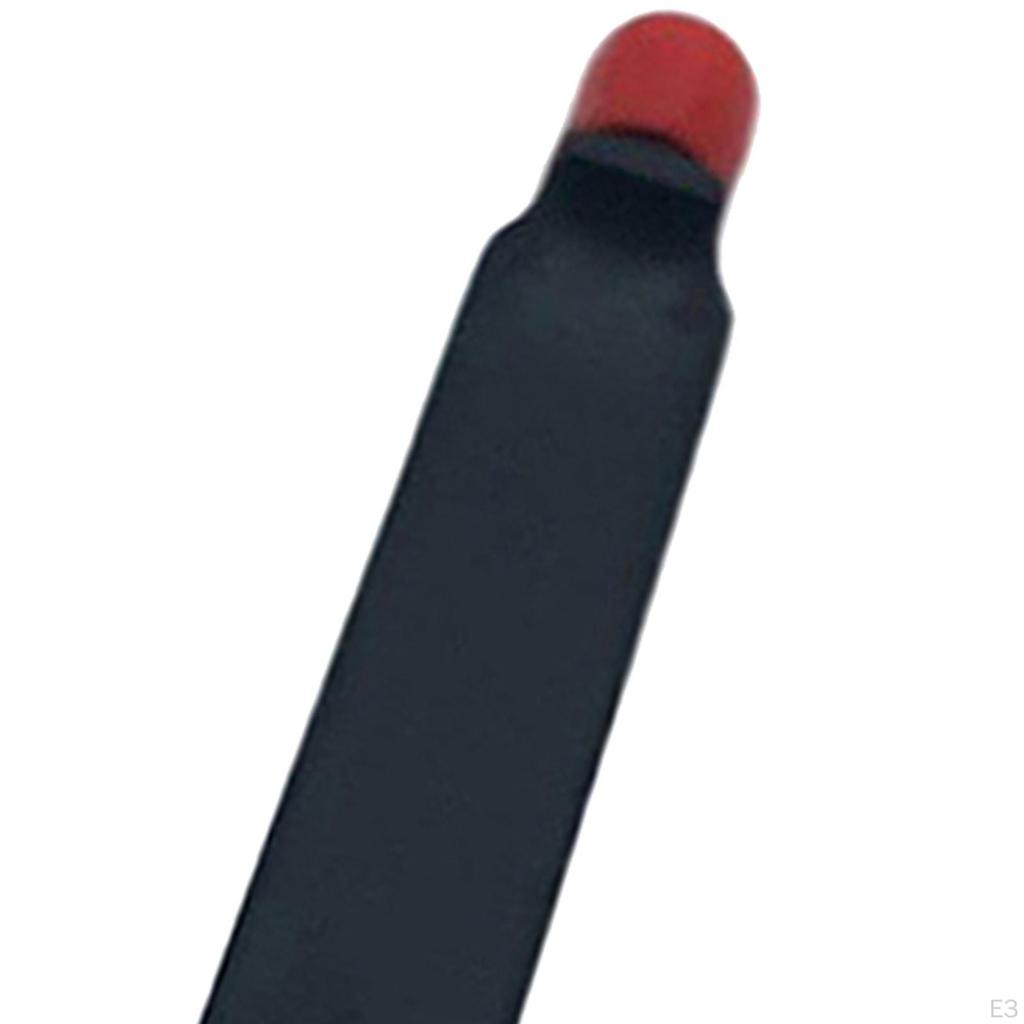

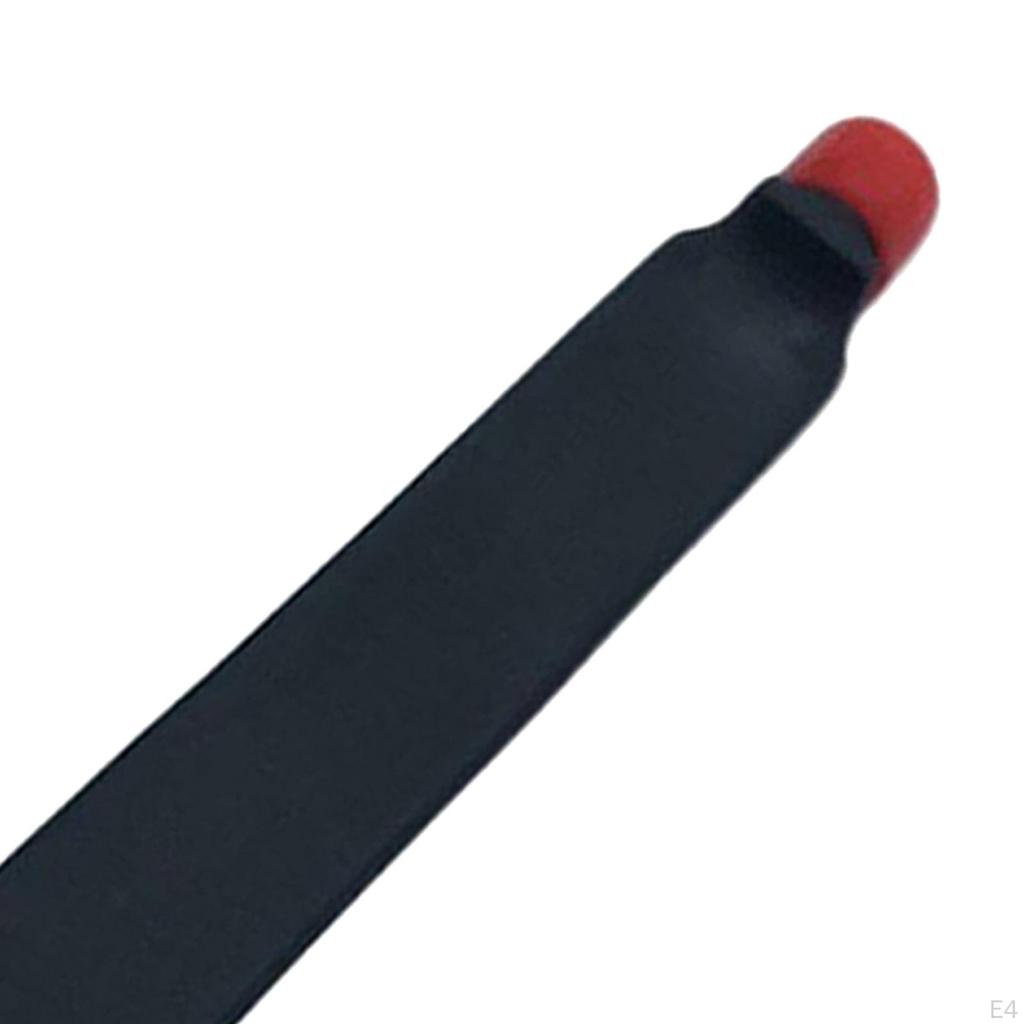

- Style 5 Electric field probe (non-contact): handle thickness is about 2.3mm, probe length is about 10mm, total length is about 10cm.

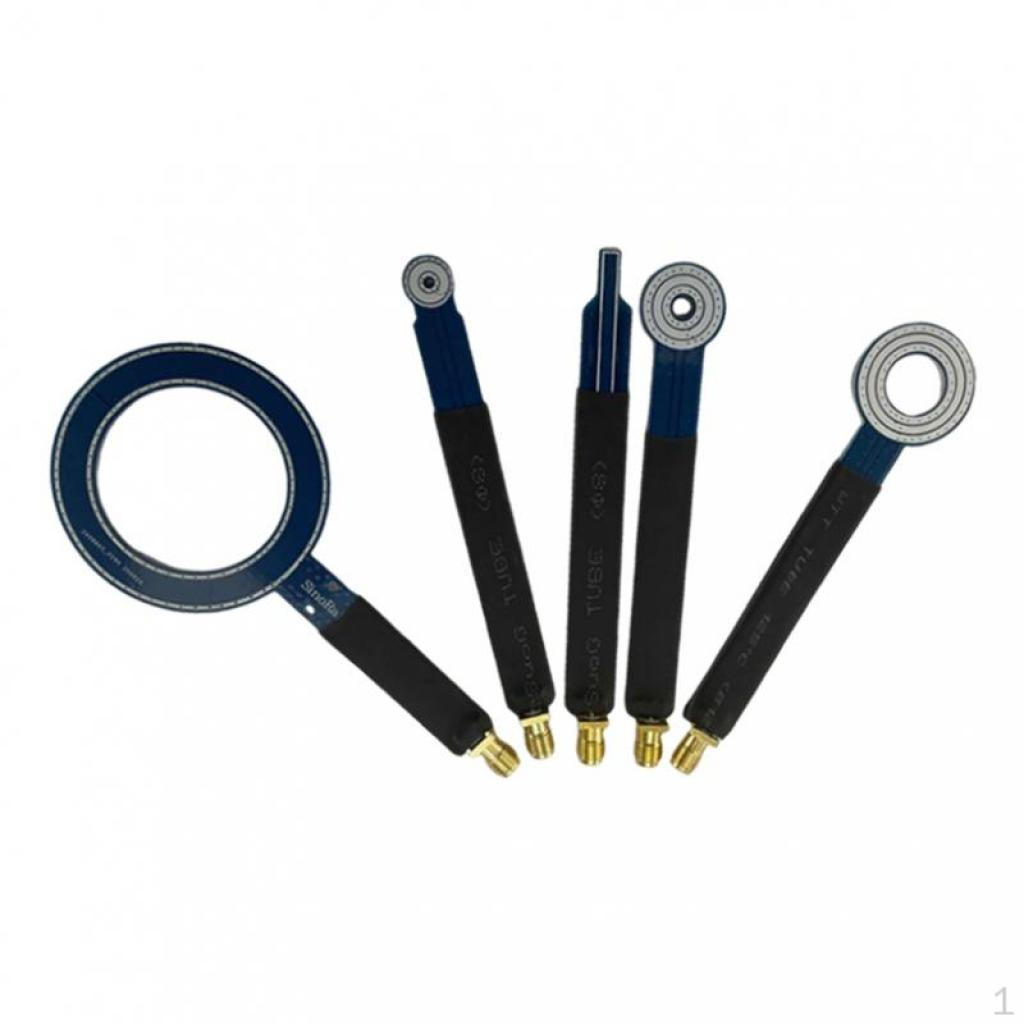

Package Includes: 1/5 Piece EMC EMI Near Field Probe(as picture show)

Note: Please allow slight dimension difference due to different manual measurement.
