433MHz AC 110V 220V Wireless RF Remote Control Switch 1CH Relay Receiver With ON OFF Transmitter For Led Light Bulb DIY Control

Note: The relay controller is RF Receivers ,the wall switch is RF only. Wall switch itself cannot control lights on off. It needs to work with rf receiver together.

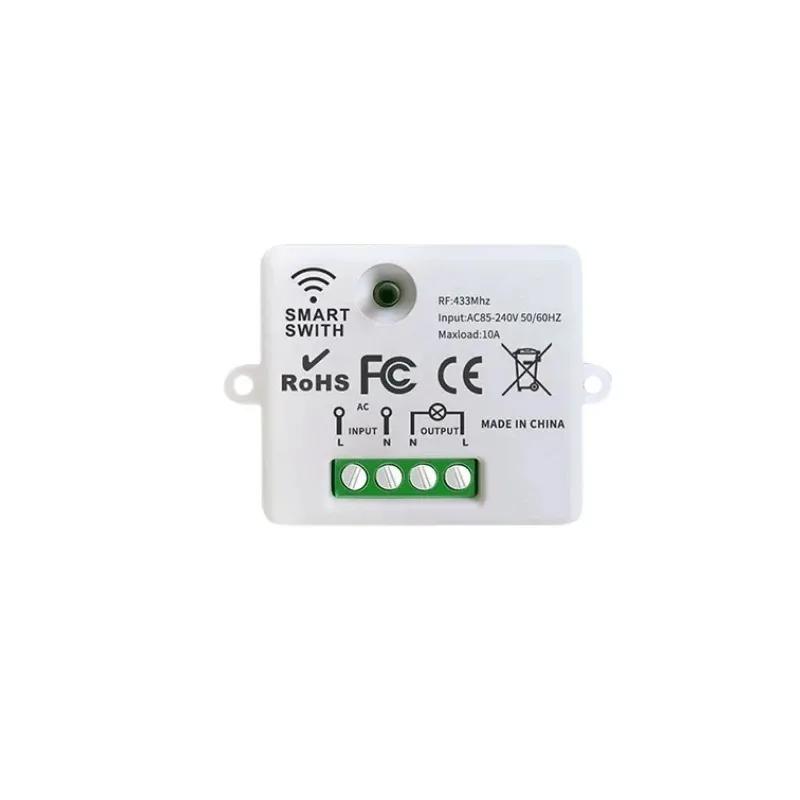

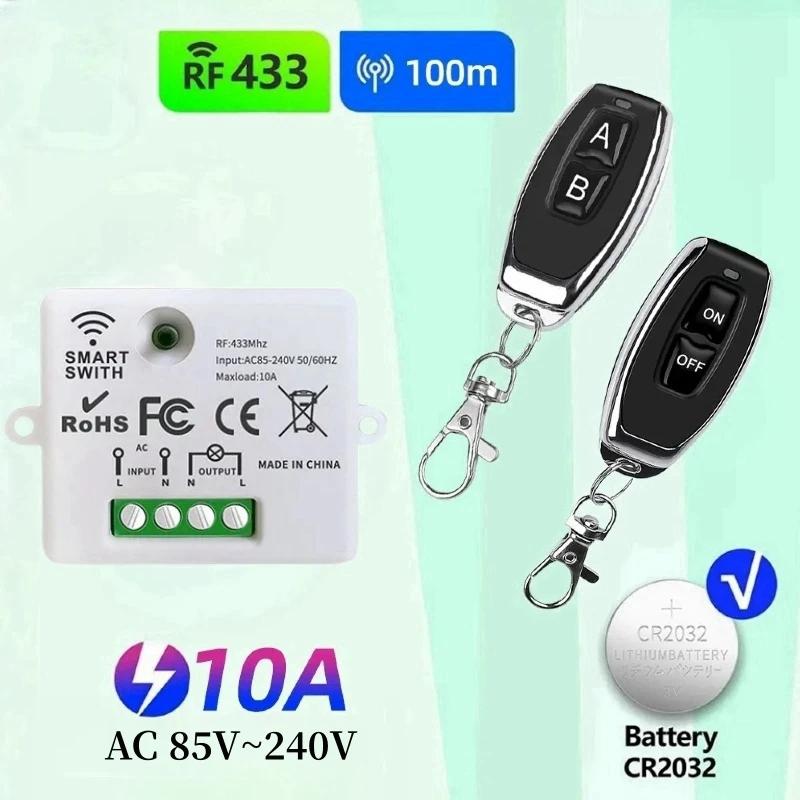

Relay Receiver Board Parameter Working voltage : AC 85V 240V Quiescent Current : <5MA Max current : 10A Max load: 2200W Receiver Body Size : 47*42*27mm Weight:35g RF frequency : 433MHz Pin : L \ N Working temperature : -10 +70 Celsius Receiving Sensitivity : >97dbm Amount of storage remote controls : 20 pieces Support encoding : EV1527 Leaning code RF Operating mode : ASK superheterodyne wireless reception Receiving range : Open space is more than 100 meters Remote operating mode : Toggle Mode / Latched Mode

Easy connect and multi control one

The receiver is easy to install, Multi switches can control different receivers or one receivers

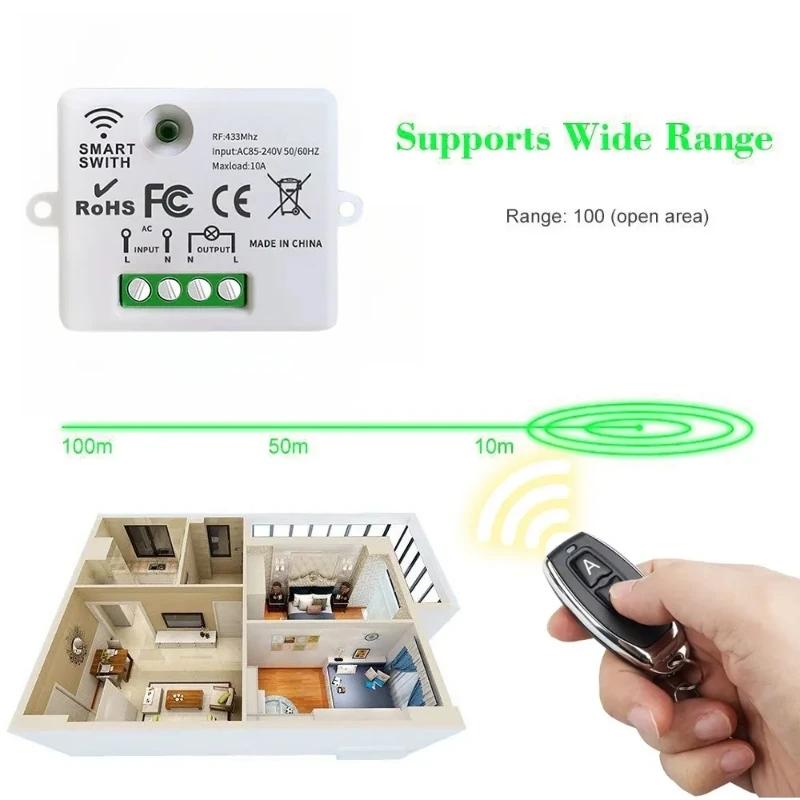

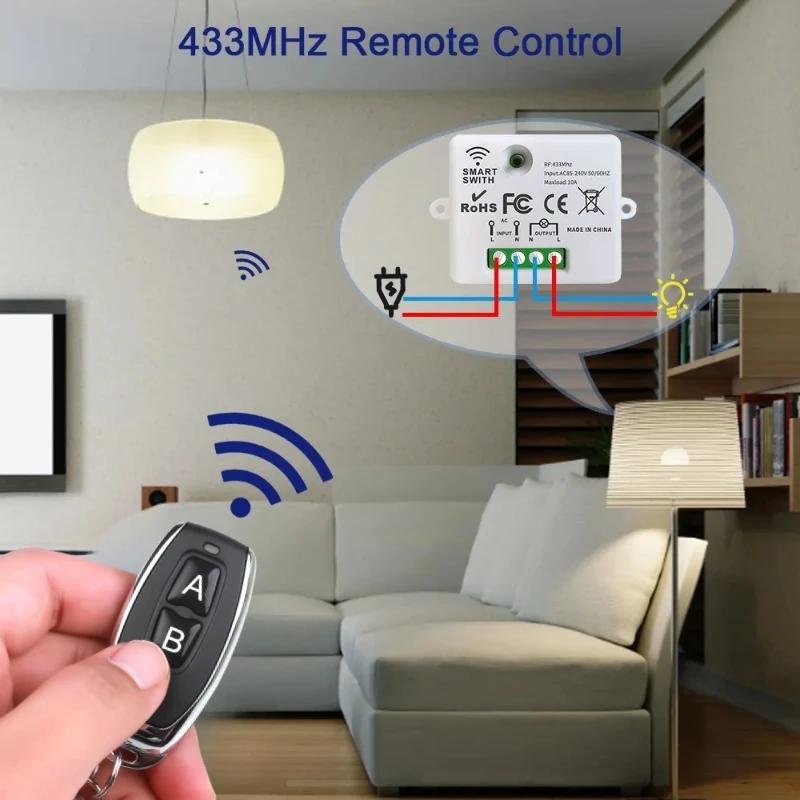

strong signal and Long distance controlControl the light in the room, even outside the room, The receiver can be remotely controlled up to 100 meters through a wireless switch and the signal can be controlled through the wall Wide range of applicationProducts can be used in homes, farms, factories, offices, laboratories, supermarkets, and so onRemote control Water pump \ Fan \ Lamp \ LED light \ bulb \ ventilation device\ Exhaust system, Kettle, water heaters \ Signal transmission \ Electrical equipment\Factory Home Office Ventilation Pump LED Light

Smart Home, Feel free to use it together Learning Pair Codeit can work with any remote control with the same frequency, so you needn't worry about losing remotecontrol any more.(if the remote control is lost, buy one and pair with the PCB board is Ok )

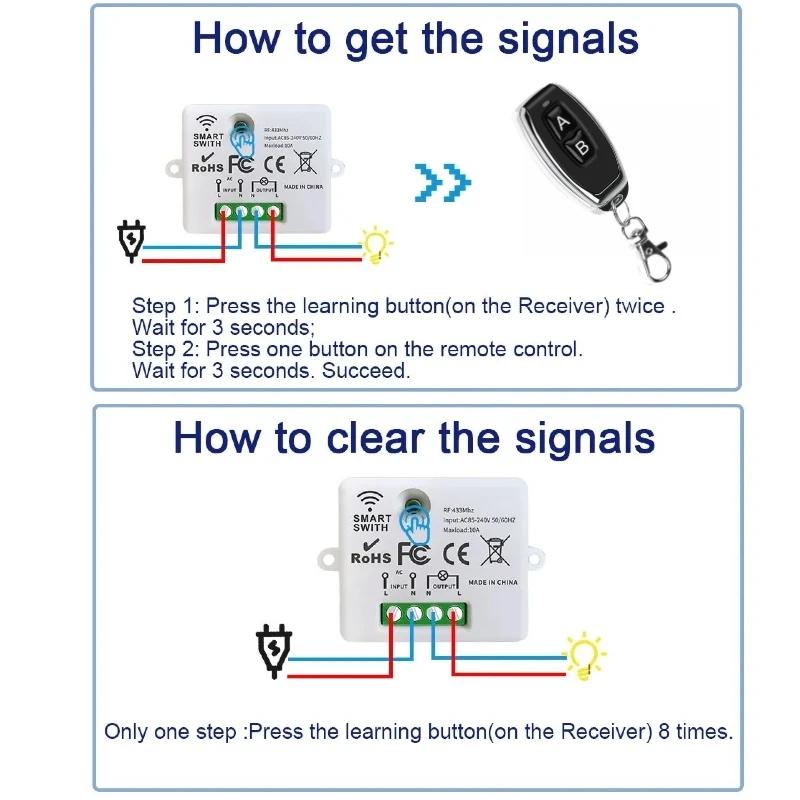

How to get the signal Step 1: Press the learning button(on the Receiver) twice. Wait for 3 seconds; Step 2: Press one button on the remote control or wall panel. Wait for 3 seconds. Succeed. How to clear the signal Only one step: Press the learning button(on the Receiver) 8 times. Wait for 3 seconds;

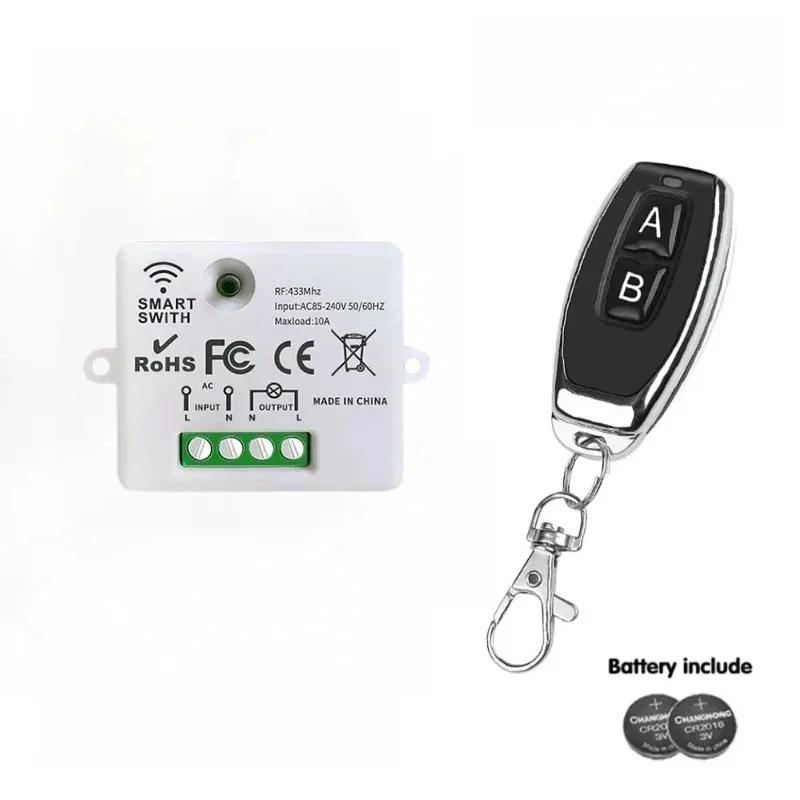

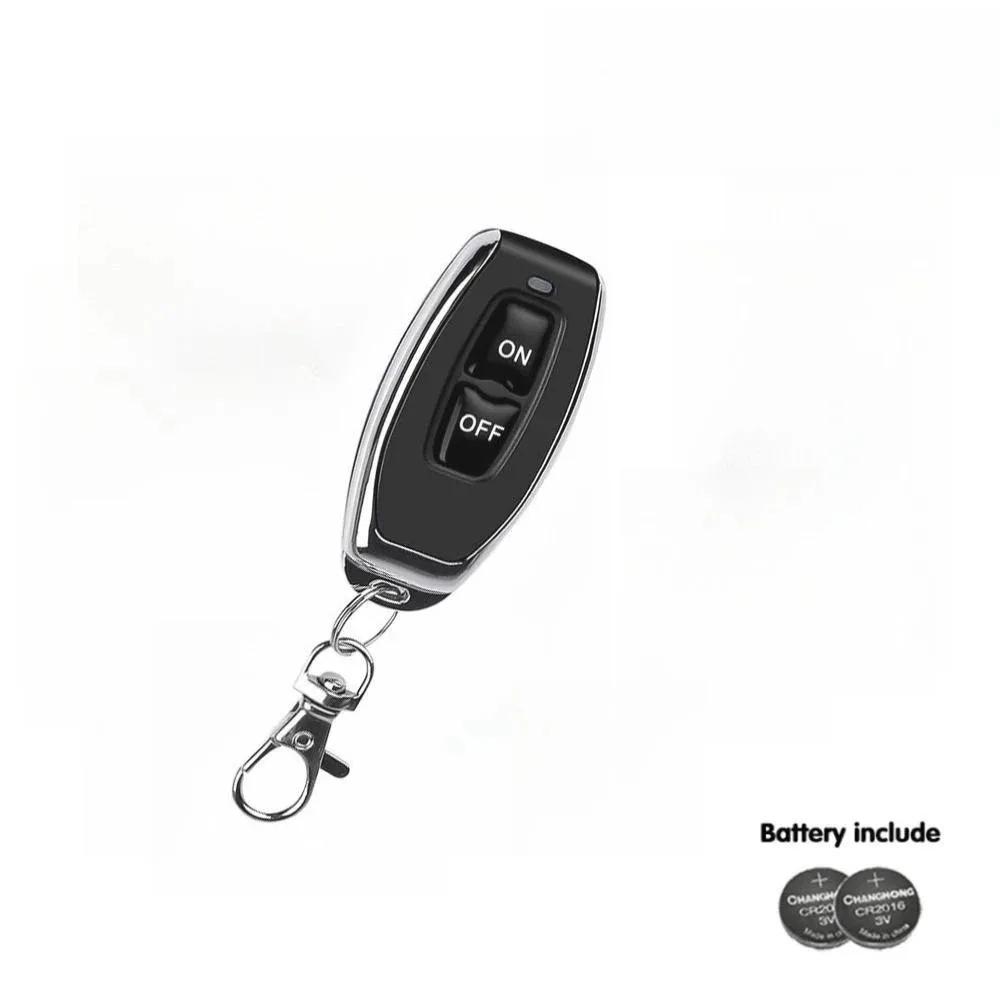

Package Includes: AS the picture

NOTE: ①Images on this page are for illustration only and due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!

②Please allow 1-3cm measuring deviation due to manual measurement.
