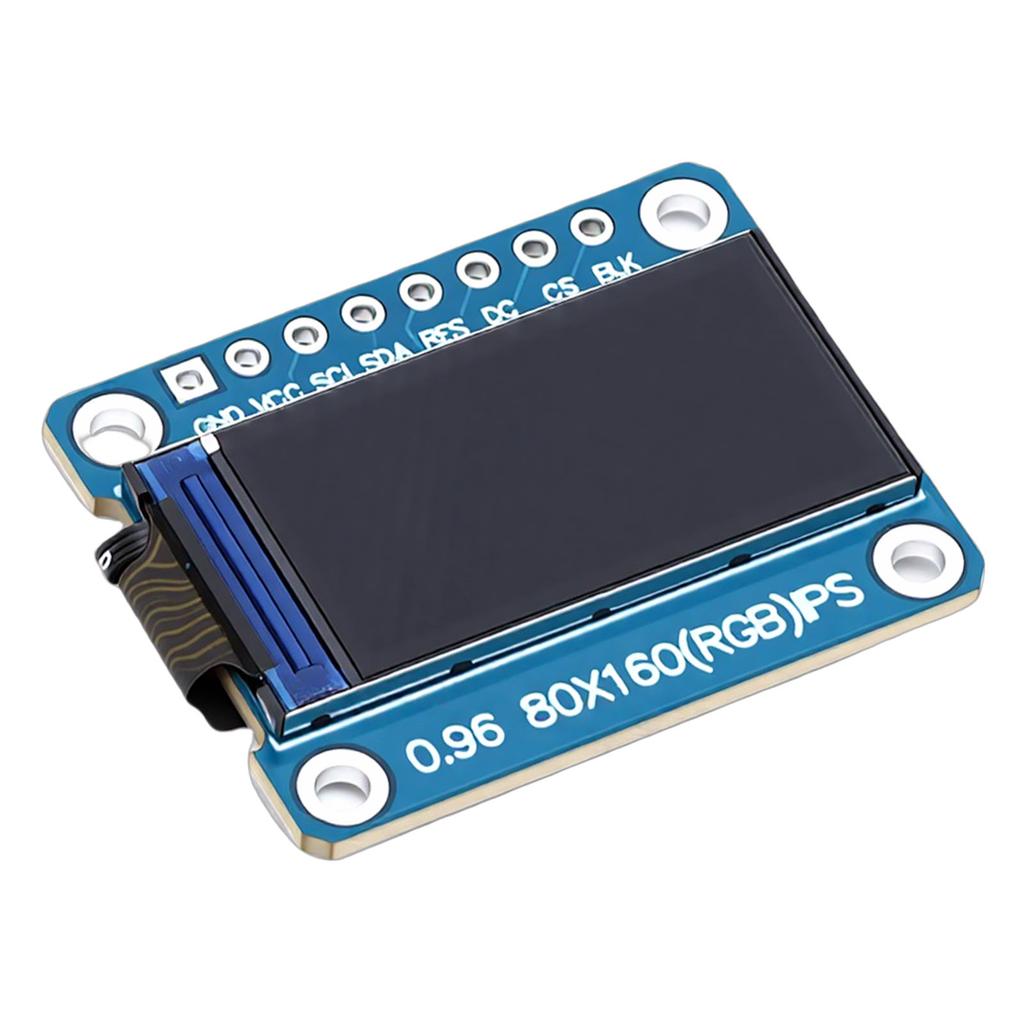

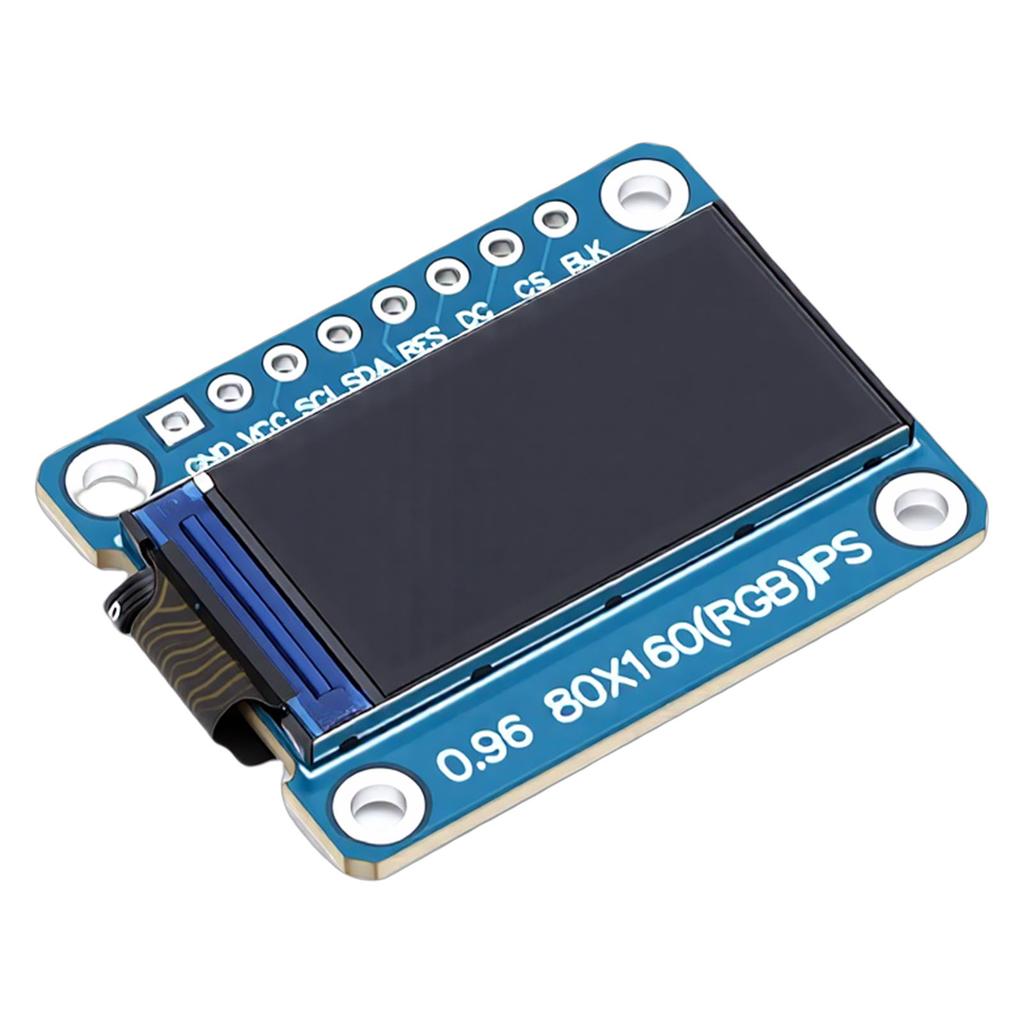

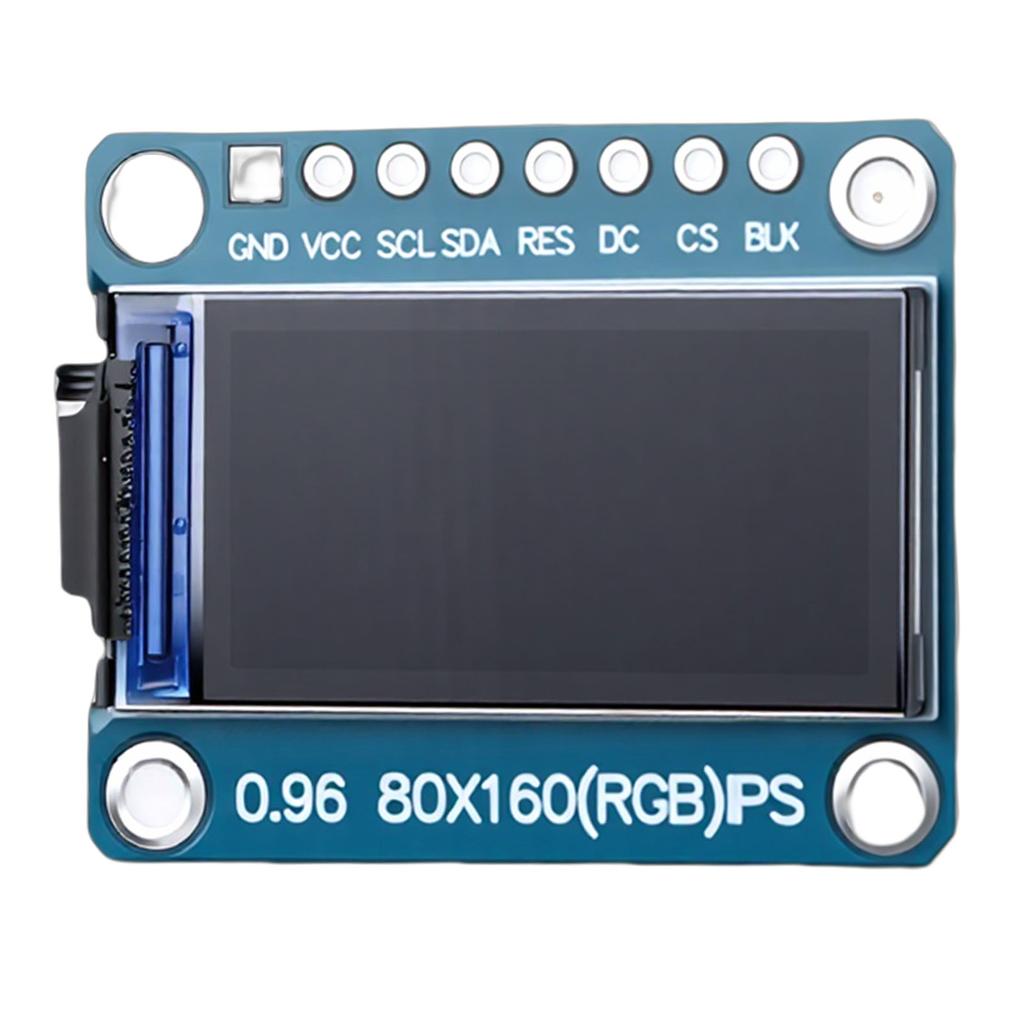

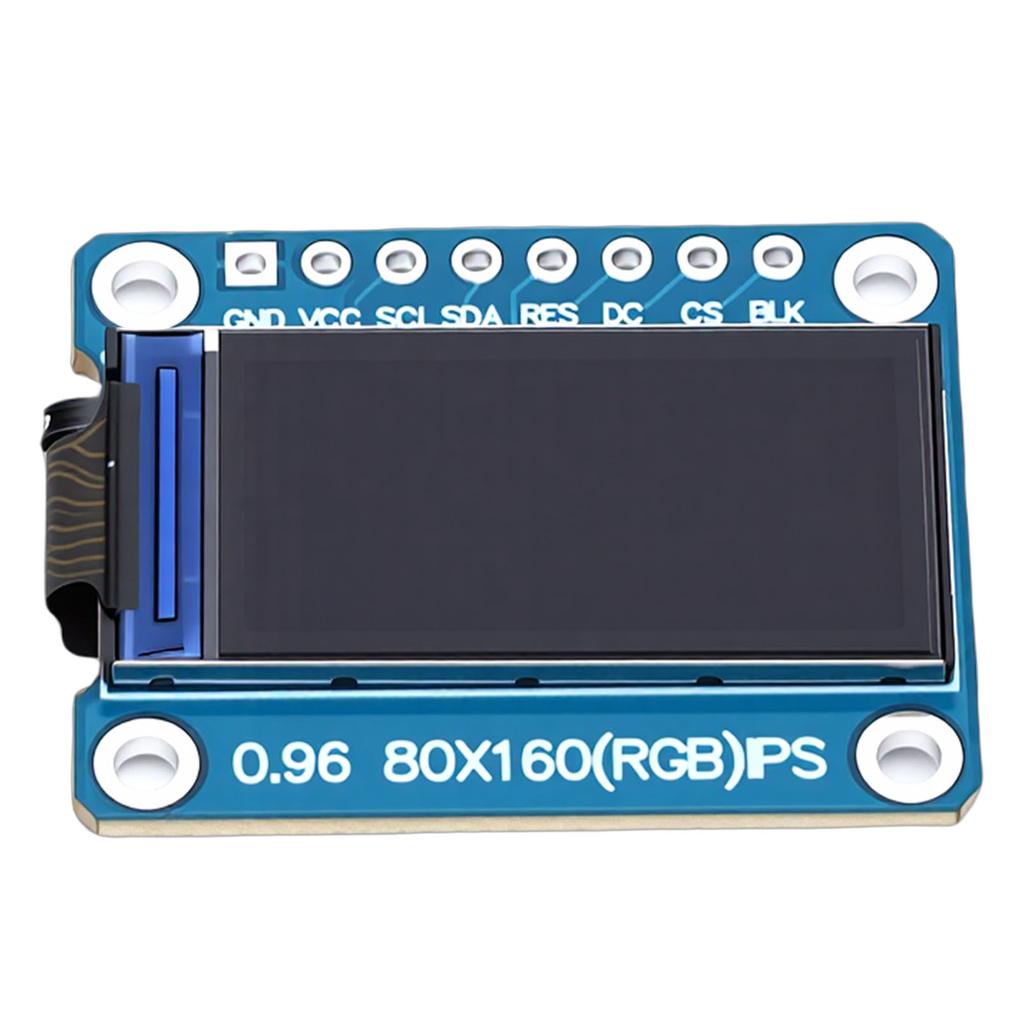

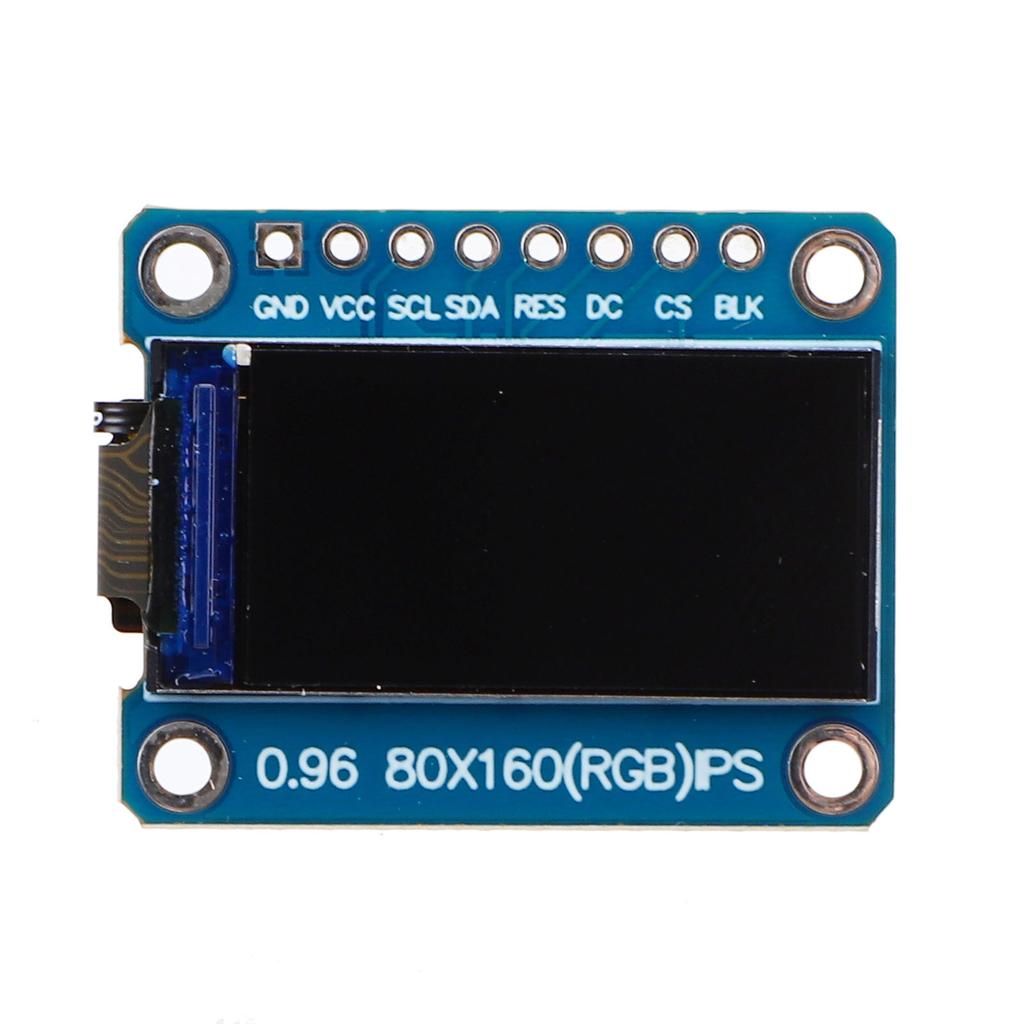

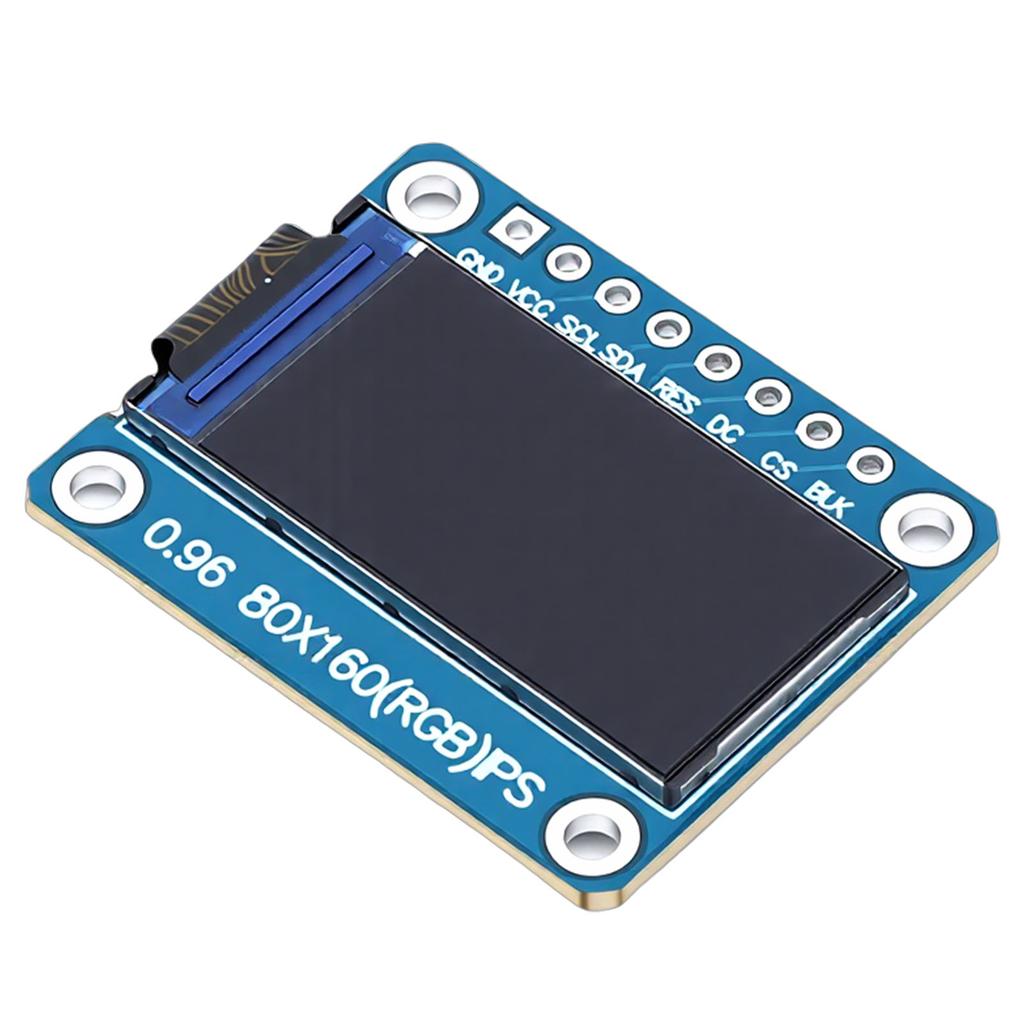

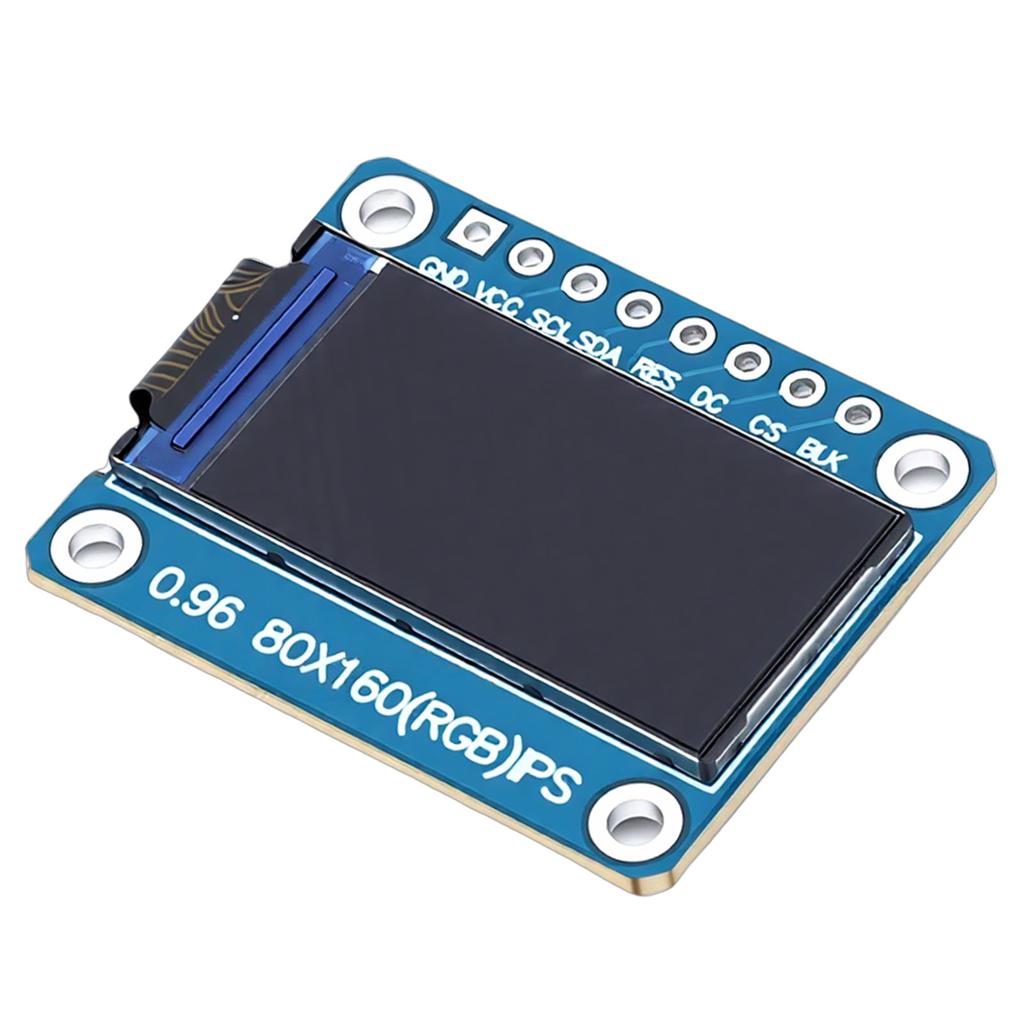

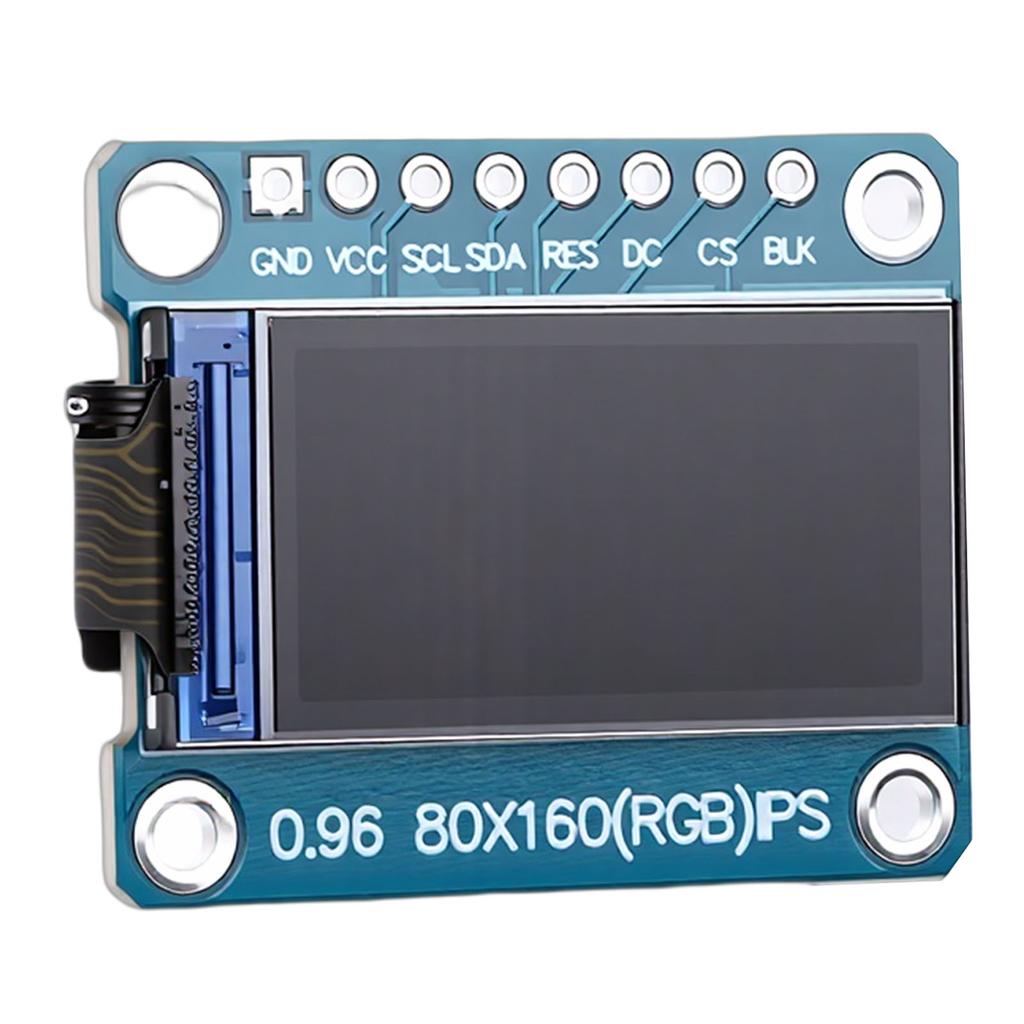

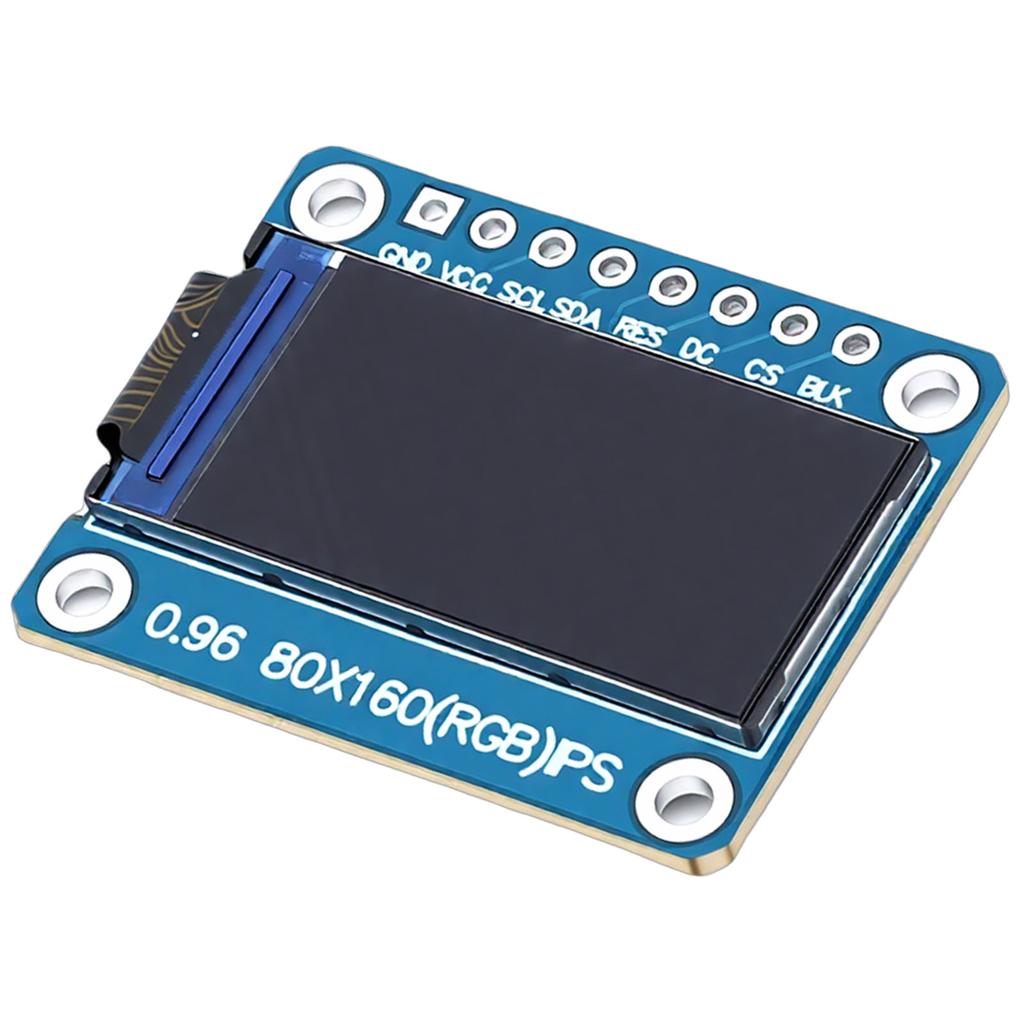

LCD Display Module Support for ST7735 Driver 0.96in Thin Film Transistor 80x160 Resolution Onboard IPS Full Color

Feature: 1. PIN DESCRIPTION: GND is Power ground; VCC for Positive terminal of power supply; SCL is SPI Clock line; SDA is SPI data cable; RES is Organic Light Emitting Diode reset. Organic Light Emitting Diode needs to be reset after being powered on. DC is SPI data or Command selection pin; CS for SPI chip selection signal. BLK: is LCD backlight control, with default pause function and backlight off at low levels 2. APPLICABLE PRODUCTS: LCD display module can be used to fit for RasPi, Onboard IPS Full Color Liquid Crystal Screen, interface type is SPI, 8 pin, 65K full color display 3. CLEAR DISPLAY: The resolution of the LCD display module is 80x160, and the display direction is adjustable, allowing for horizontal or vertical display. The screen can provide a good display effect 4. RELIABLE PCB: 0.96in LCD display module adopt excellent PCB materials with reliability and miniaturization good maintenance and interchangeability 5. TECHNICAL PARAMETERS: The screen size of the Thin Film Transistor LCD display module is 0.96in, and adopts the support for ST7735 control chip, which is stable and reliable Specification: Item Type: LCD Display Module Material: PCB Screen Size: 0.96in Resolution: 80x160, adjustable display direction horizontal and vertical Control Chip: Support for ST7735 Display Area: Approx. 10.8 x 21.696mm 0.43 x 0.85in Product Size: Approx. 24 x 30mm 0.94 x 1.18in Interface Type: SPI Pin Number: 8 Pins Display Color: 65K full color Operating Temperature: 20 70 degrees Celsius Pin Description: GND: Power Ground, VCC: Power Positive 3.3 5V, SCL: SPI Clock Line, SDA: SPI Data Line, RES: Organic Light Emitting Diode Reset (needs to be reset after power on), DC: SPI Data Command Select Pin, CS: SPI Chip Select Signal, BLK: LCD Backlight Control (default pause, turn off backlight at low level). Package List: 1 x LCD Display Module Note: Size may have some discrepancies.
