The power input terminal adopts ‑low impedance large‑capacity electrolytic capacitor, which greatly improves the anti‑interference ability.

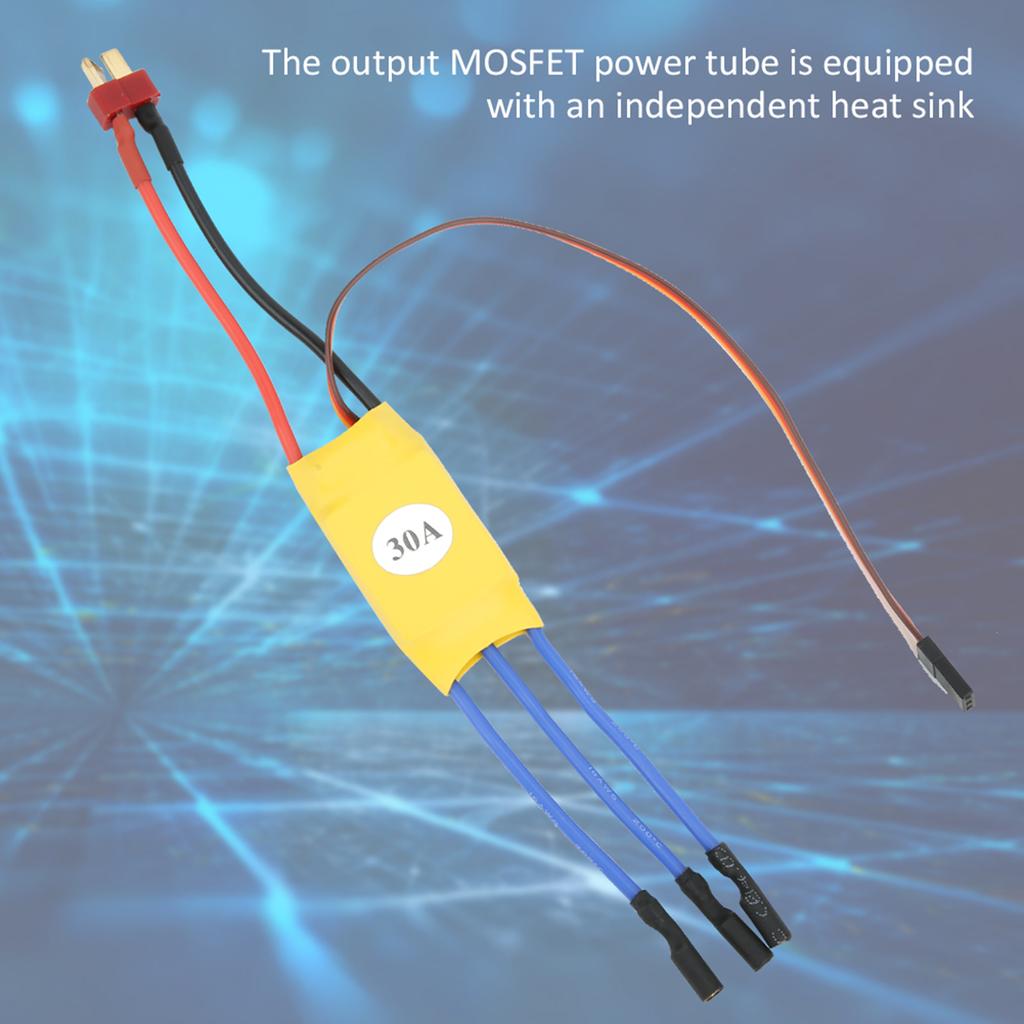

The output MOSFET power tube is equipped with an independent heat sink to reduce the temperature rise of the device and improve the system s high current working capacity.

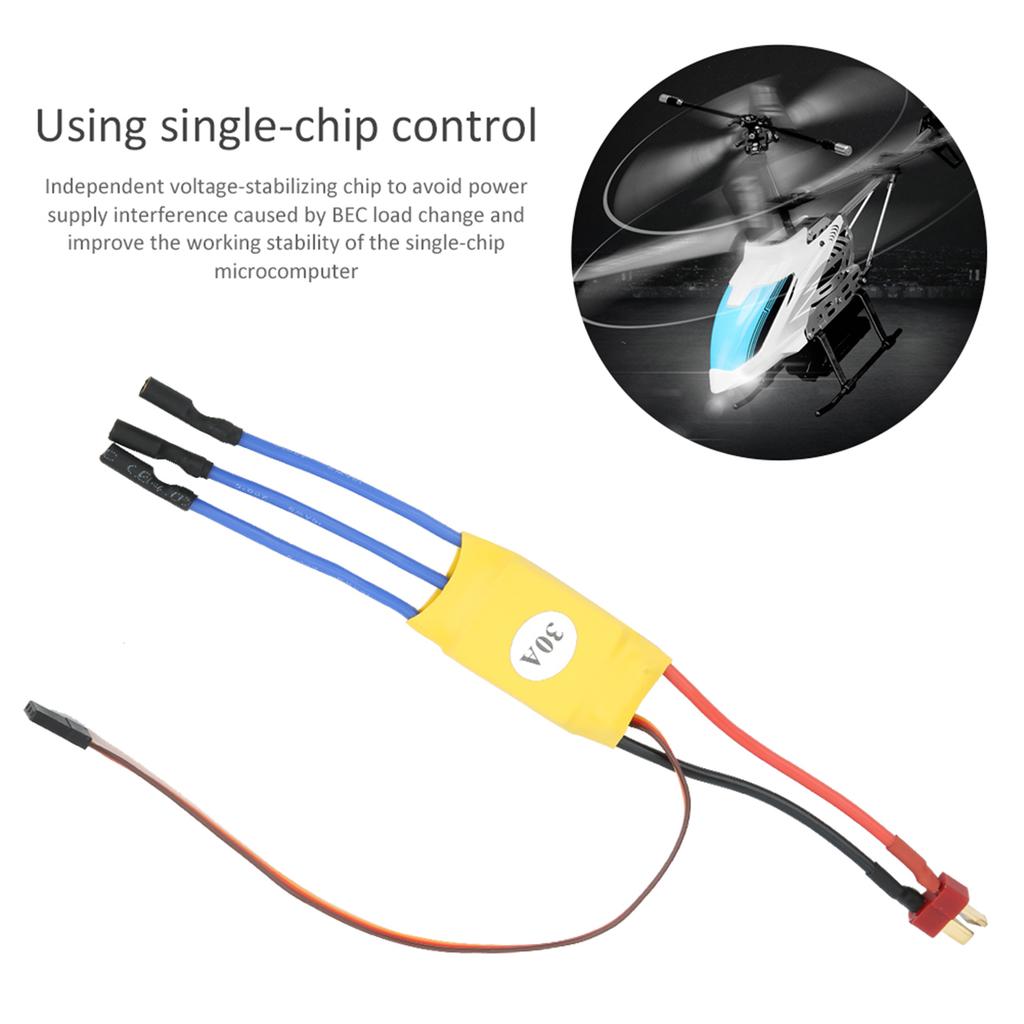

Using single‑chip control. Continuous current 30A, 35A, 40A for 10 seconds.
Condition: 100% Brand New

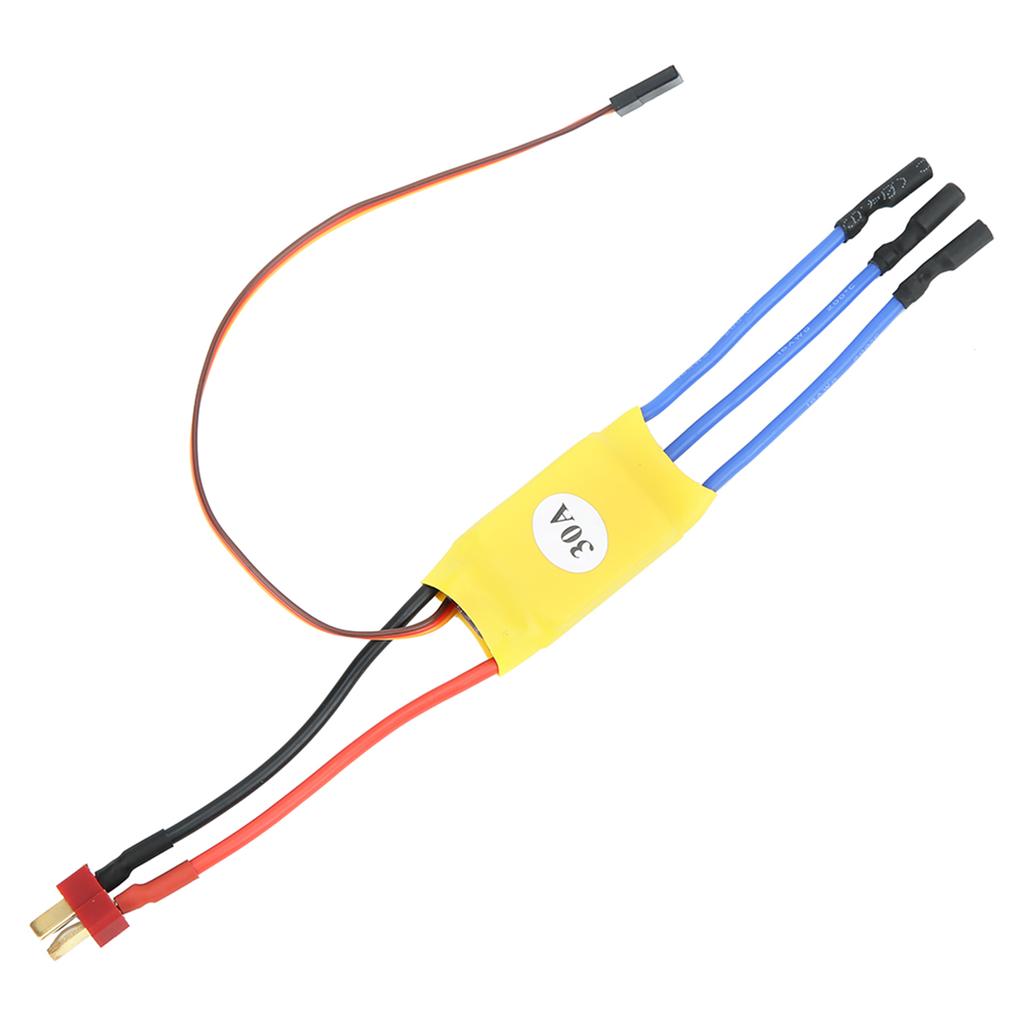

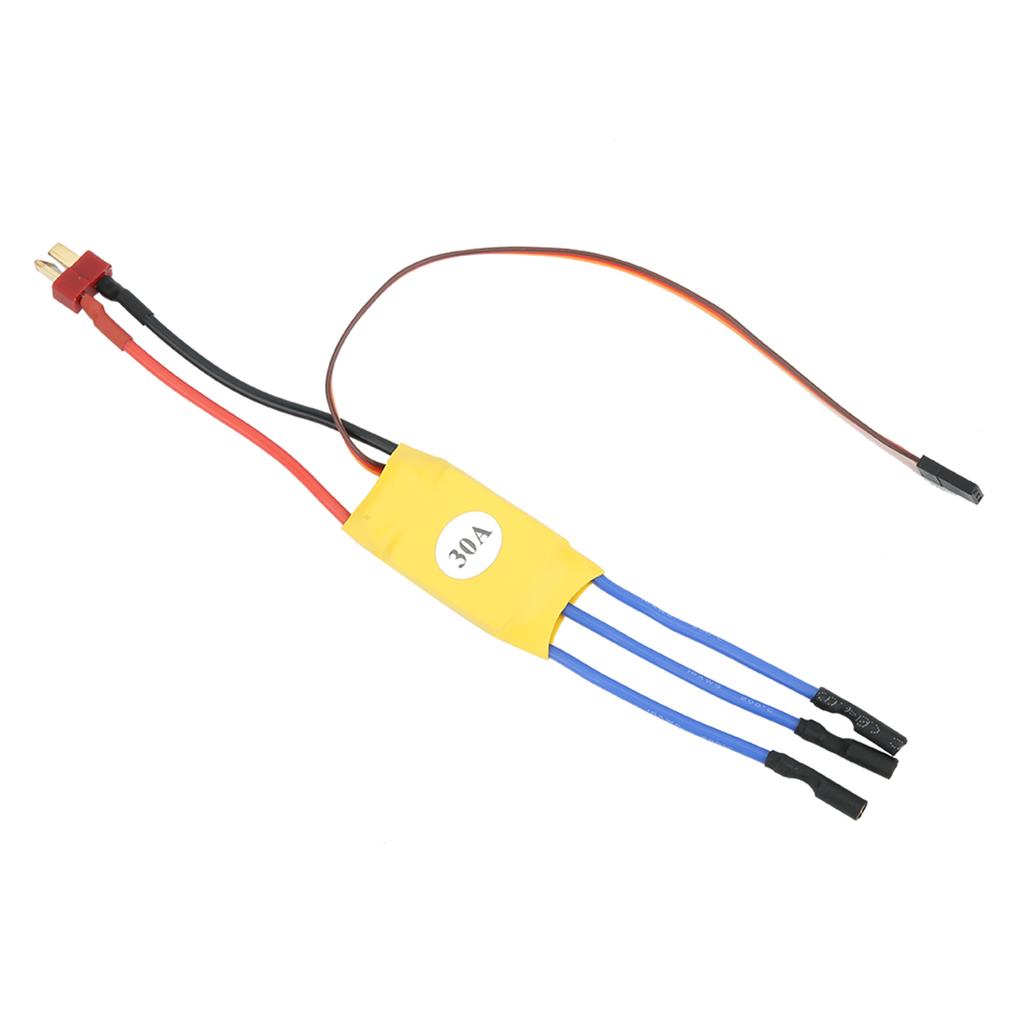

Item Type: ESC
Material: Electronic Components
Color: Yellow
BEC Power Supply: Yes
Cut-Off Voltage: 4V
BEC: Yes
BEC Power Supply: 1.5a Celsius 5V
Reset: Throttle minimum control.
Current: 30A
Applicable Battery Range: 2-3 sections

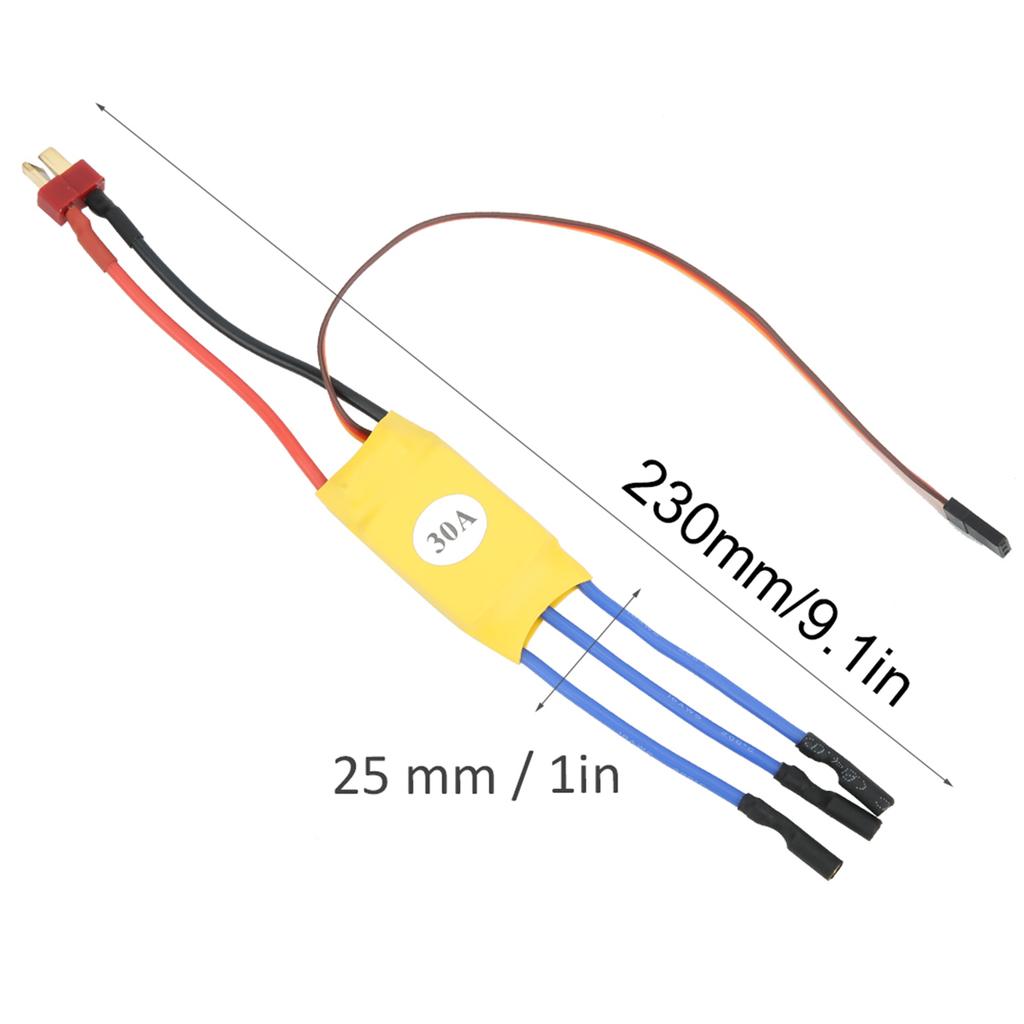

Size: Approx. 230 x 25 x 8mm Celsius 9.1 x 1 x 0.3in
Weight: 27 g Celsius 1 oz(approx.)
Function:
1. Safe power on function: When the power is on, the motor will not be started immediately no matter the throttle rockers is in any position to avoid injury;
2. Throttle stroke calibration function: adapt to the difference of throttle stroke of different te control, improve the linearity of throttle response, with smoothly, delicate speed control feel and first-class speed regulation linearity;
3. Program setting items:
Battery type: Li-xx (lithium battery) Celsius Ni-xx (nickel cadmium or nickel metal hydride), the default value is Li-xx (lithium battery).
Low Voltage Mode: Reduce powerCelsiusturn off the output, the default is to reduce power.
Low Voltage Threshold: LowCelsiusmediumCelsiushigh, the default is Cut-off discharge voltage.
When the Li-xx battery is set, the number of lithium batteries will be automatically determined. Under lowCelsiusmediumCelsiushigh conditions, the cut-off voltage of each battery is respectively 2.6V, 2.85V and 3.1V.
When the Ni-xx battery is set, the voltage of the battery pack will be automatically detected when the power is turned on. In lowCelsiusmediumCelsiushigh cases, the cut-off voltage is 0%, 45% and 60% of the input voltage at startup (0% means no low-voltage ).
Startup mode: normalCelsiussoftCelsiussuper up, default is normal startup.
Normal start is suitable for fixed wing, can start the motor quickly in 0.2 seconds
Celsiussuper for helicopter; The initial rotation speed of and super is relatively low, it takes 1 second and 2 seconds from start to full speed respectively, but if the throttle is turned off after start and the starting again within 3 seconds, the starting will be in normal mode, so as to avoid falling down due to slow during some stunt actions.
Timing: LowCelsiusmediumCelsiushigh, the default is the middle value.
In general, the low Timing can accommodate more motors, but to improve efficiency, it is recommended to use a low-Timing for a 2-pole motor and a medium-Timing for a motor with more than 6 poles. To increase the speed, the Timing can be set to a high value. After improving the Timing setting, you should test it on the ground before flying.
Extreme Use:
Continuous current 30A, 35A, 40A for 10 seconds.

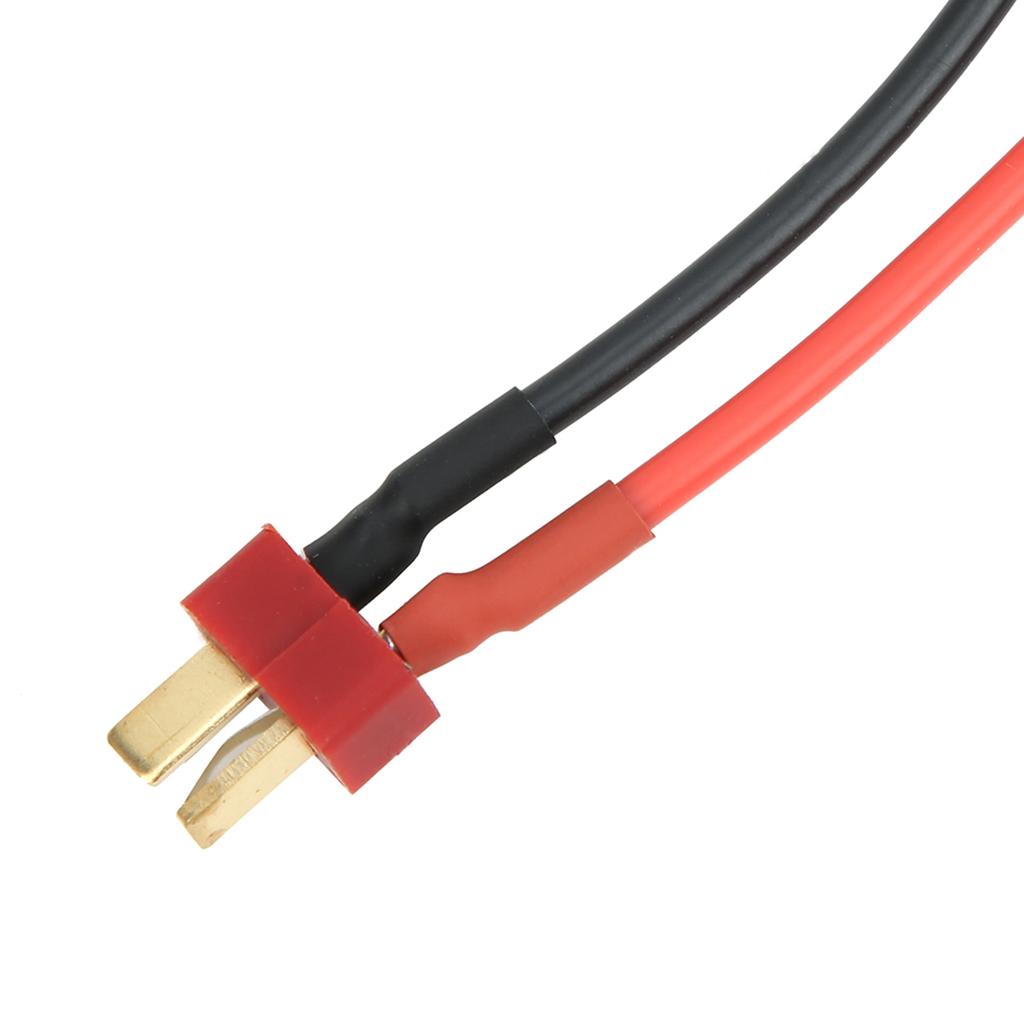

Type: (1)Without Plug (2)Welded T plug (3)Gold Plug
SizeCelsiusWeight: 45 X 24 X 11mmCelsius1.77 X 0.94 X 0.43 , 25g (Including Cable)
Voltage Range: 4V-16V
Batteries Quantity: 2-4 (4 does not allow BEC output)
BEC output: 2A continuous, (nstant 3A)
2 : 4-5 Miniature steering engine
3 : 3-4 Miniature steering engine
Protective function:
Automatically select 2-3 , the voltage is 6VCelsius9V respectively;
Automatically select NIMH, the voltage of each section is 0.8V;
Safe for start up, Wrong throttle position, forbidden to start.
Temperature , 110 degrees temperature, stop.
Out of control , no signal after 1 second, stop.
Performance Description:
The upper limit of the speed is 210,000 rpm in 2 poles, 35,000 rpm in 12 poles, and 42,000 rpm in 14 poles.
8KHz PWM control with speed control curve.
Automatic throttle adaptation for more
