Features:

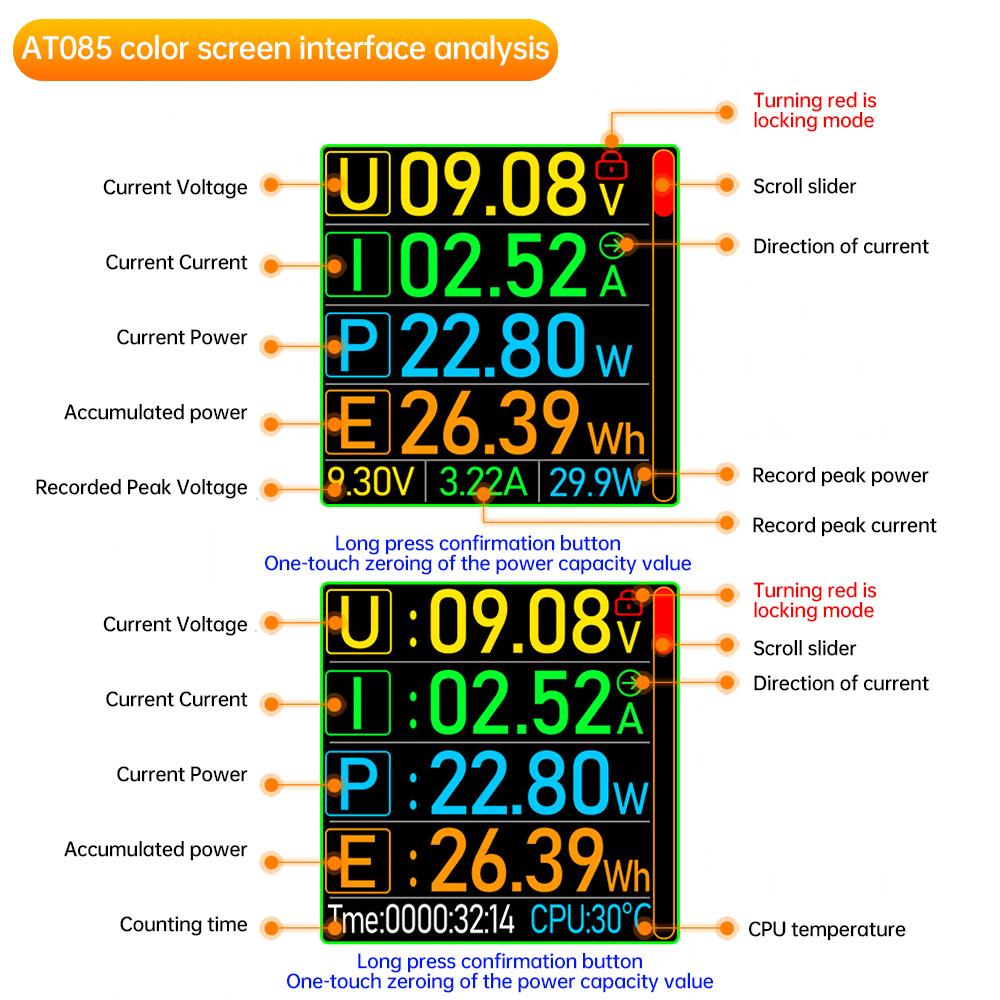

1.Real-time display of voltage, current, power, charge, capacity, temperature, timing, voltage and current curve.

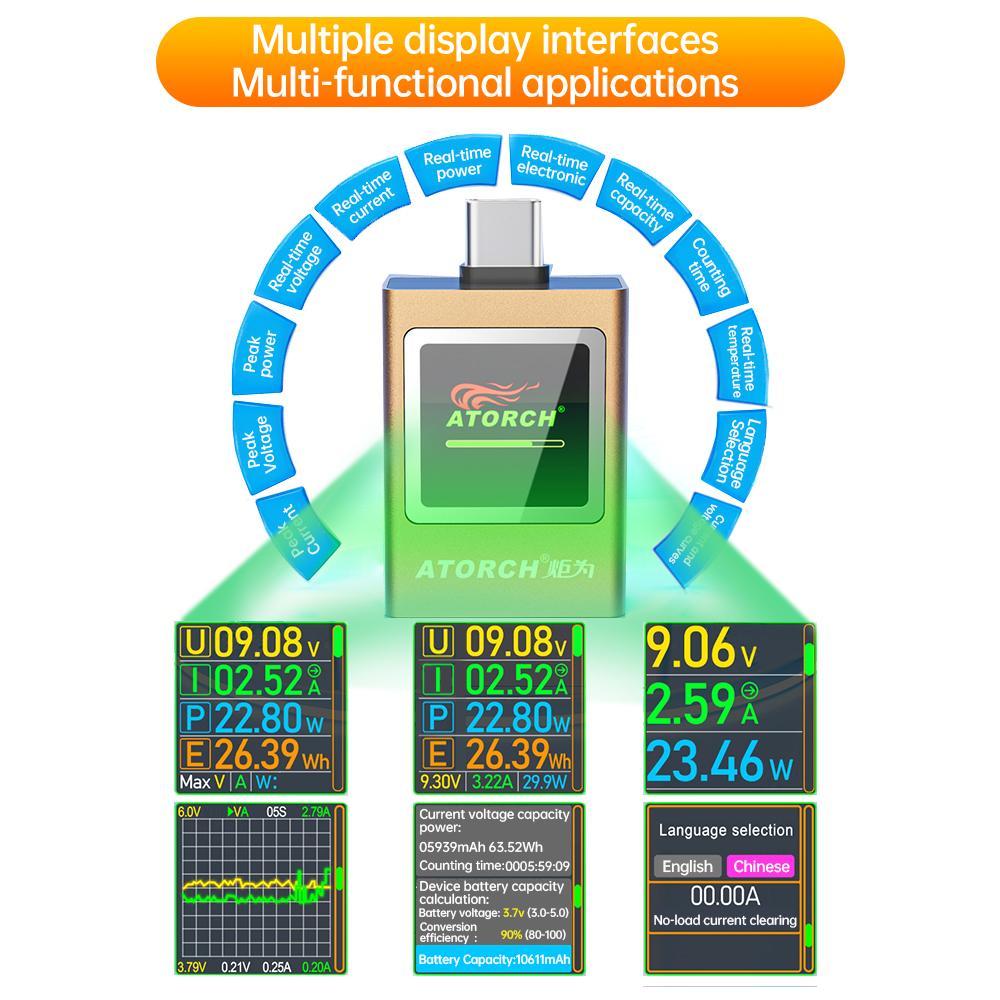

2. Support a variety of fast charging protocols, one screen display a variety of parameters, high-definition colour screen, a variety of test parameters at a glance.
3. Increased real-time voltage and current curve display function, which is convenient for users to analyse the fluctuation status during the charging process.

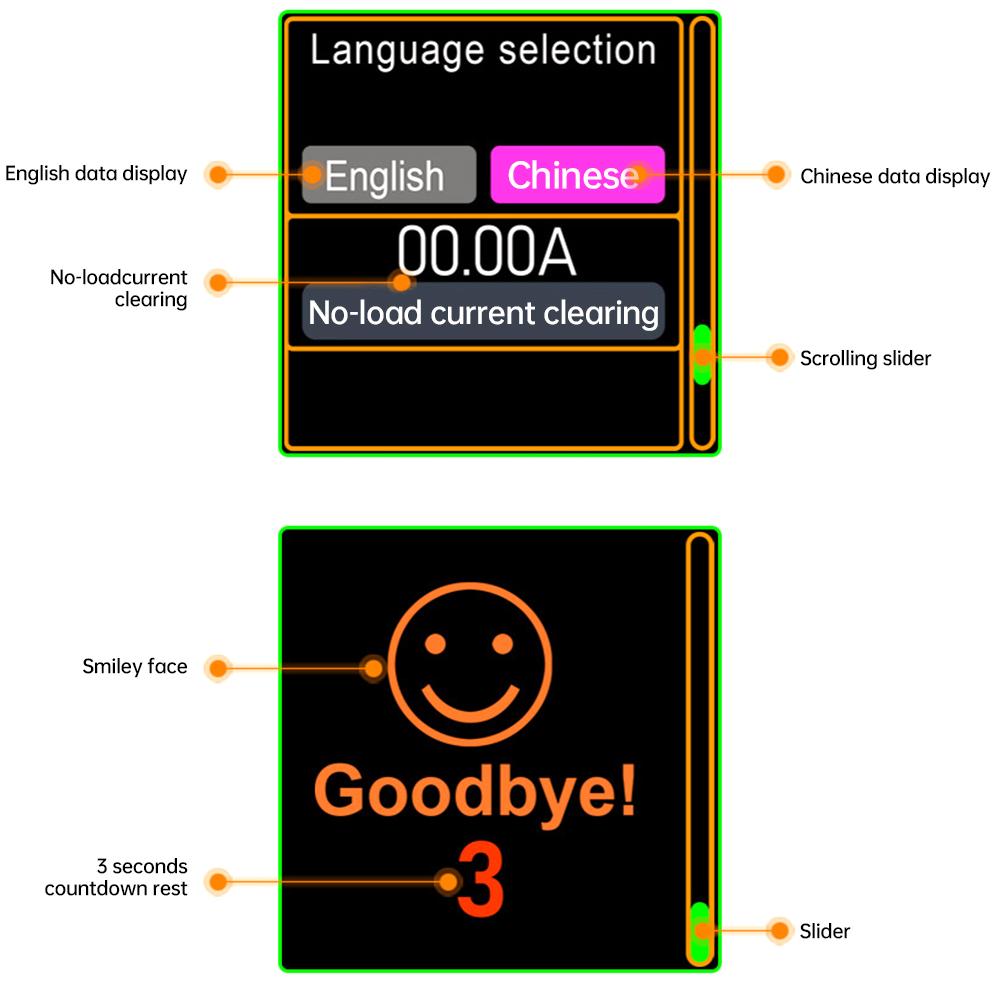

4. Bidirectional current measurement, and a separate addition to the no-load current clearing function, making the measurement of fine current more accurate.
5. With power failure memory and storage data function, convenient for the data accumulation application of the sub-survival test.
6.PD protocol charger in the absence of current automatically switch off the screen zero power consumption, to extend the life of the screen, energy saving and environmental protection.
7. DC-DC switching power supply chip is used to supply power to the route, with wide input voltage range, high power supply efficiency and small power consumption.
Parameters:
Working voltage: DC 4.5~50V
Working current: 0~6A (short time peak 12A)
Bidirectional current: bidirectional 12A
Power display: 0~600W
Power display: 0~9999Wh
Capacity display: 0~99999mAh
Operating temperature: 0~45℃/32~113℉
Sampling resistance: 0.001R
Power Consumption: <0.15W
Interface type: C male and C female
Protocol communication: CC1 CC2 protocol transmission, D+D- data transmission
Temperature measurement: CPU temperature measurement
Power supply: 48V full voltage power supply
Capacity Calculation: Power value counting capacity
Power supply chip: DC-DC switching power supply
Control mode: double key page
Curve Function: Dual parameter curve Pause/run available
Electricity parameter recording: real-time recording of voltage, current and power peaks.
Display screen: IPS HD colourful
Gravity Sensor: Gravity rotate screen/support lock direction
Product size: 43*25*10mm
List:
Power Meter*1
