Handheld RF Analyzer Black VNA Antenna Analyzer 50kHz-1.5GHz Measurement Type-C USB Serial 1000mAh Built-in Battery

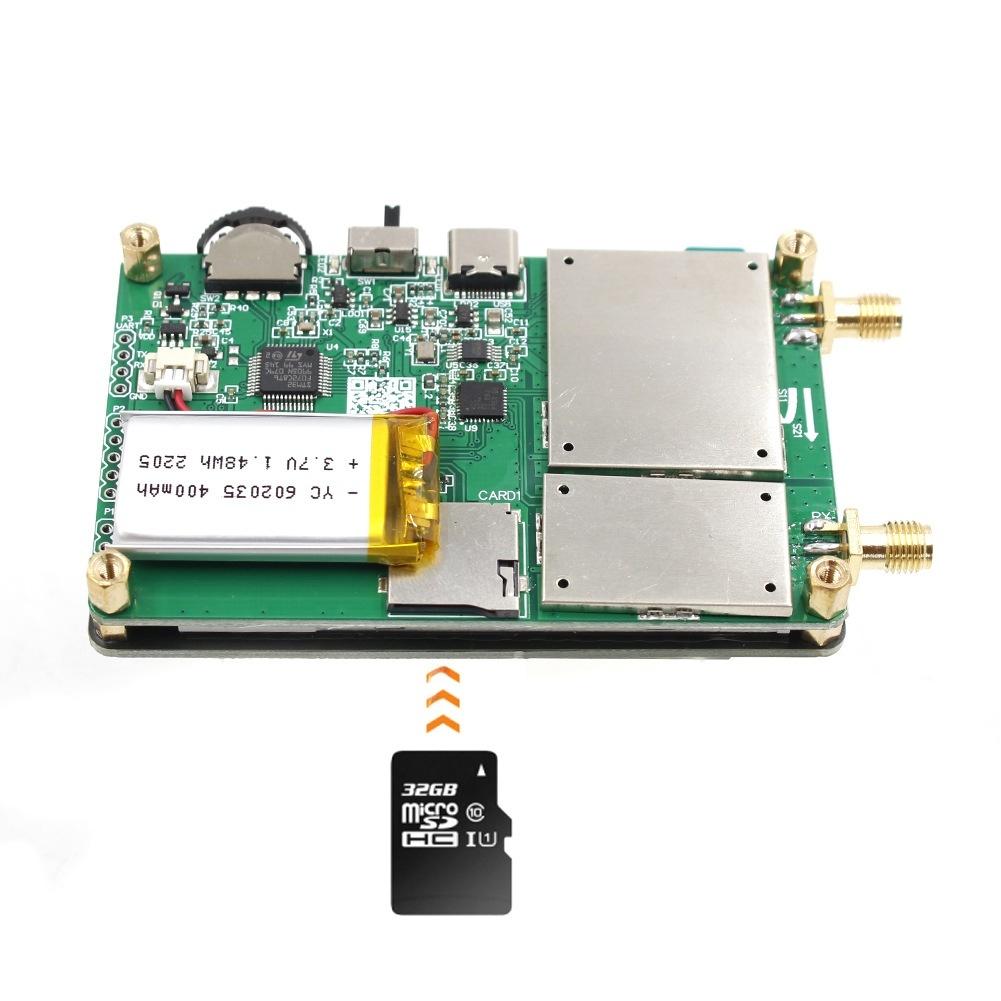

Features: This is a DIY product that offers comprehensive vector network measurement capabilities within a credit card-sized form factor. It includes a 2.8-inch touchscreen, a 400mAh battery, TX/RX measurement,  and can measure complete S11 and S21 parameters. To obtain for S12and S22 parameters, the transceiver port wiring needs to be manually changed. Updated Features: 1. Lower power supply noise, even less noise when using harmonics; 2. Built-in 1000mAh battery 3. Addedfor MicroSDcard support for easy data storage; 4. Added support; 5. Changed port names to Port1 and Port2.for MicroSDcards are supported up to 32GB, and onlyfor SPImode is supported.

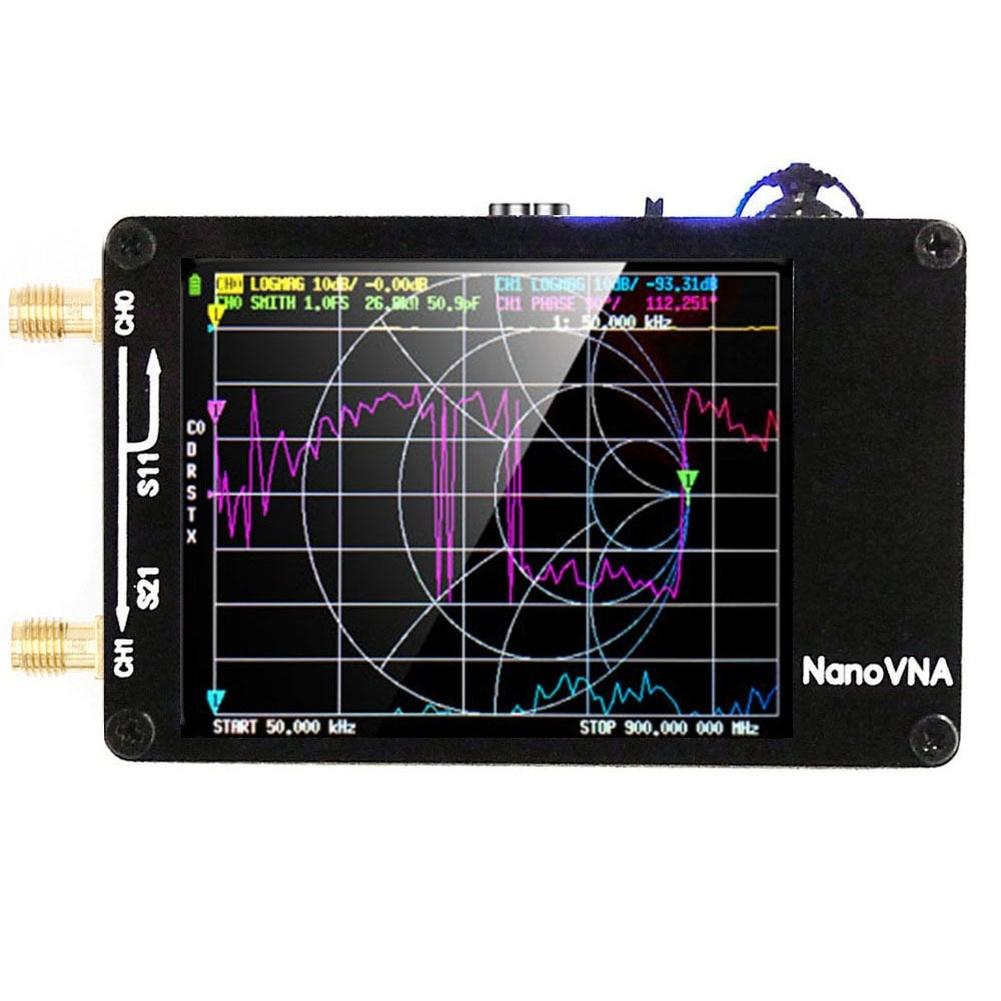

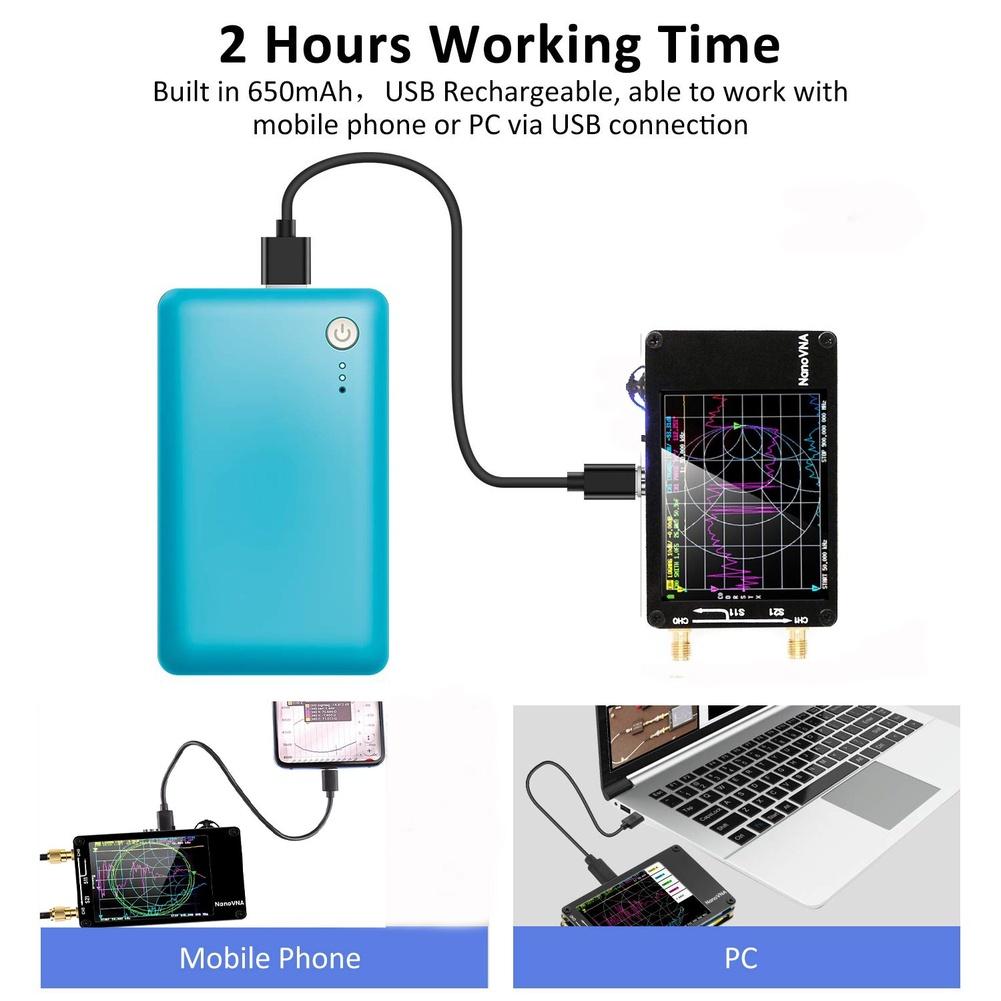

Specifications: Product Name: Vector Network Antenna Analyzer for NanoVNA-PCB Material: ABS Color: Black Size: As shown ● Measurement Frequency: 50kHz ~ 1.5GHz ● RF Output: -13dBm (Max -9dBm) ● Frequency Accuracy: <2ppm ● Frequency Stability: <0.5ppm ● Measurement Range: ● Measurement Range: 70dB (50kHz-300MHz), (50dB (300MHz-900MHz), 40dB (900MHz-1500MHz)); ● Port SWR: < 1.1 ● Display: 2.8-inch TFT (320 x 240) ● Interface:Communication Mode: (Serial) ● Power Supply: USB 5V 120mA, built-in 400mAh battery, maximum charging current 1A, continuous use for over 4 hours ● Number of Calibration Points: 101 (Fixed) ● Number of scan points: 101 (Fixed) ● Display tracking: 4, Markers: 4, Settings saved: 5 Measure S-parameters, VSWR, phase, delay,for Smithchart…;

Package contents: 1. for NanoVNA main unit *1 (including 2.8-inch touchscreen, 1000mAh battery) 2. 20cmfor SMAmale-to-male RG174 RF cable *2 3. Type-C to Type-C cable 4. Type-C data cable *1 5. Instruction manual *1 6. Stylus *1 7. Paddle *1 8. forSMAsimple calibration kit LOAD *1 9. for SMAsimple calibration kit OPEN *1 10. for SMAsimple calibration kit SHORT *1 11. for SMAfemale-to-female connector *1

Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.

Brand: Generic Height: 10 cm Is factory kit: Yes Item condition: New Length: 25 cm Model: Generic Package height: 10 cm Package length: 25 cm Package weight: 900 g Package width: 15 cm Packaging type: Case Product features: Unflyable SKU: 1013292535952_Network Tool Set Width: 15 cm
