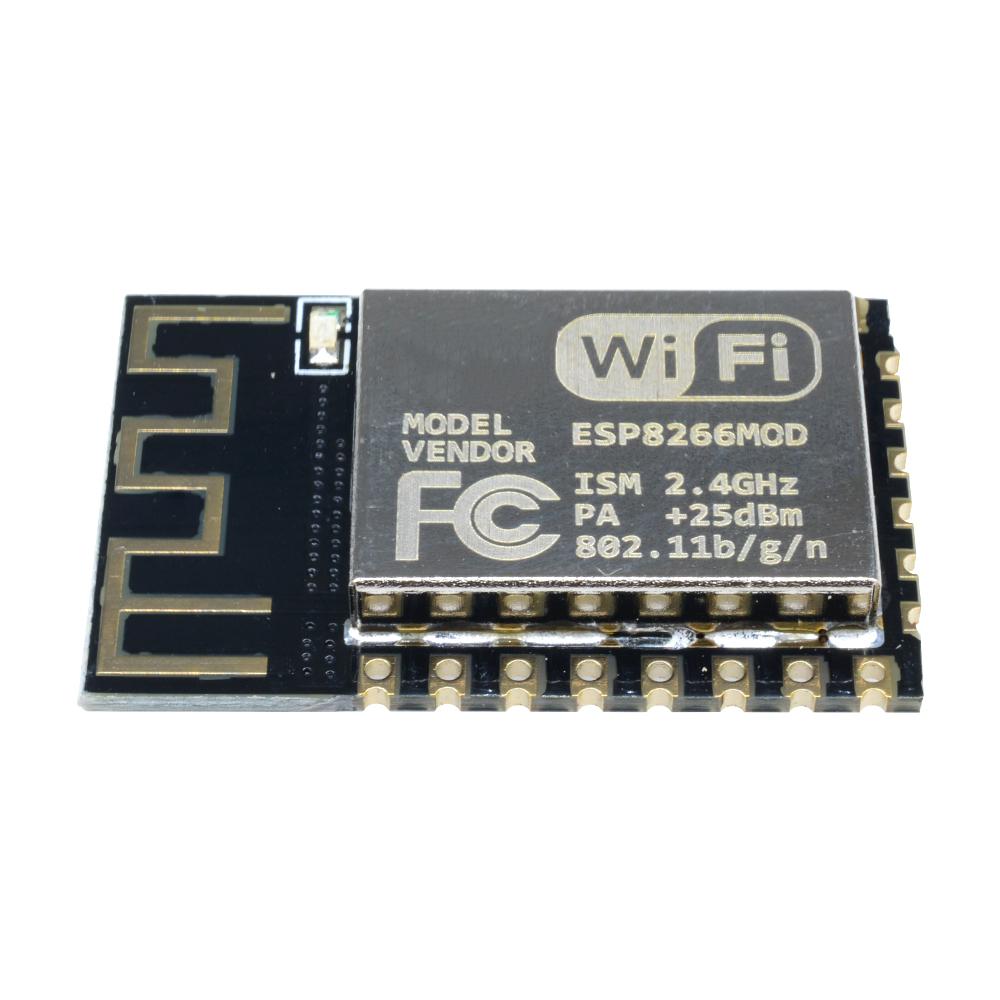

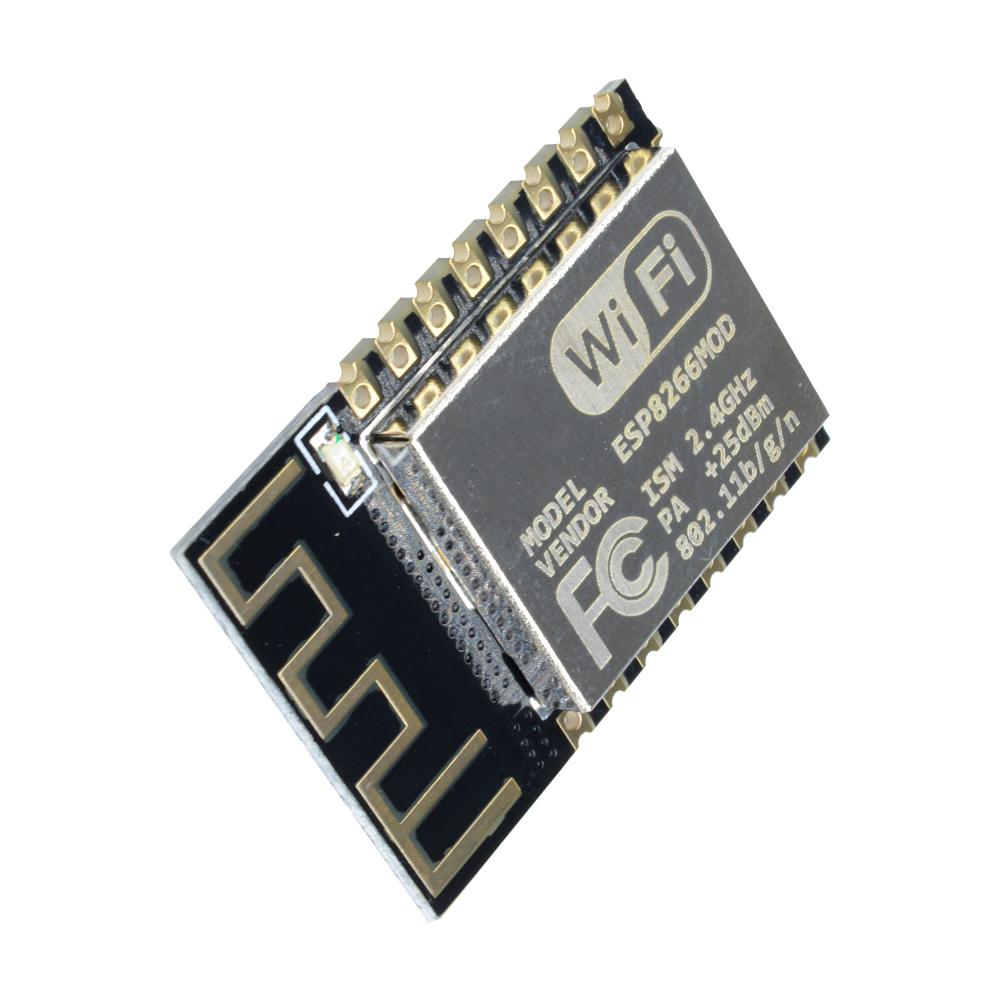

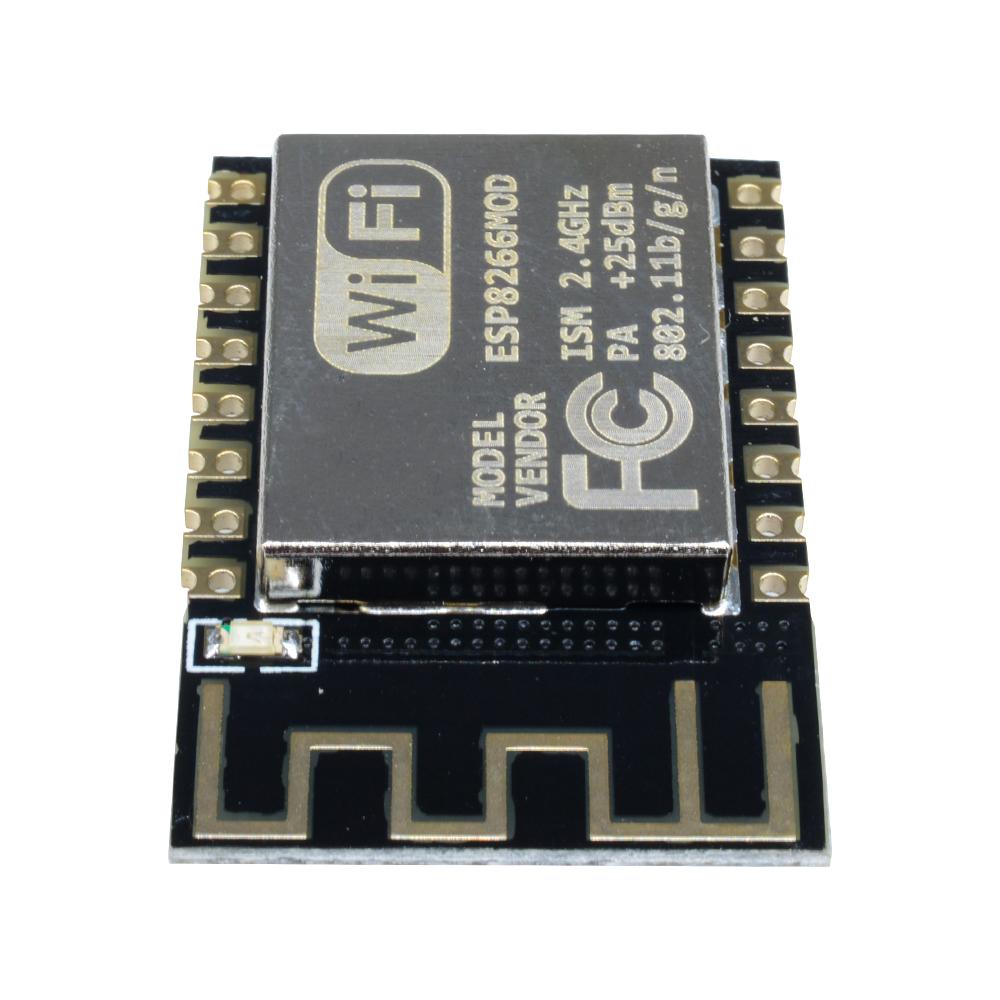

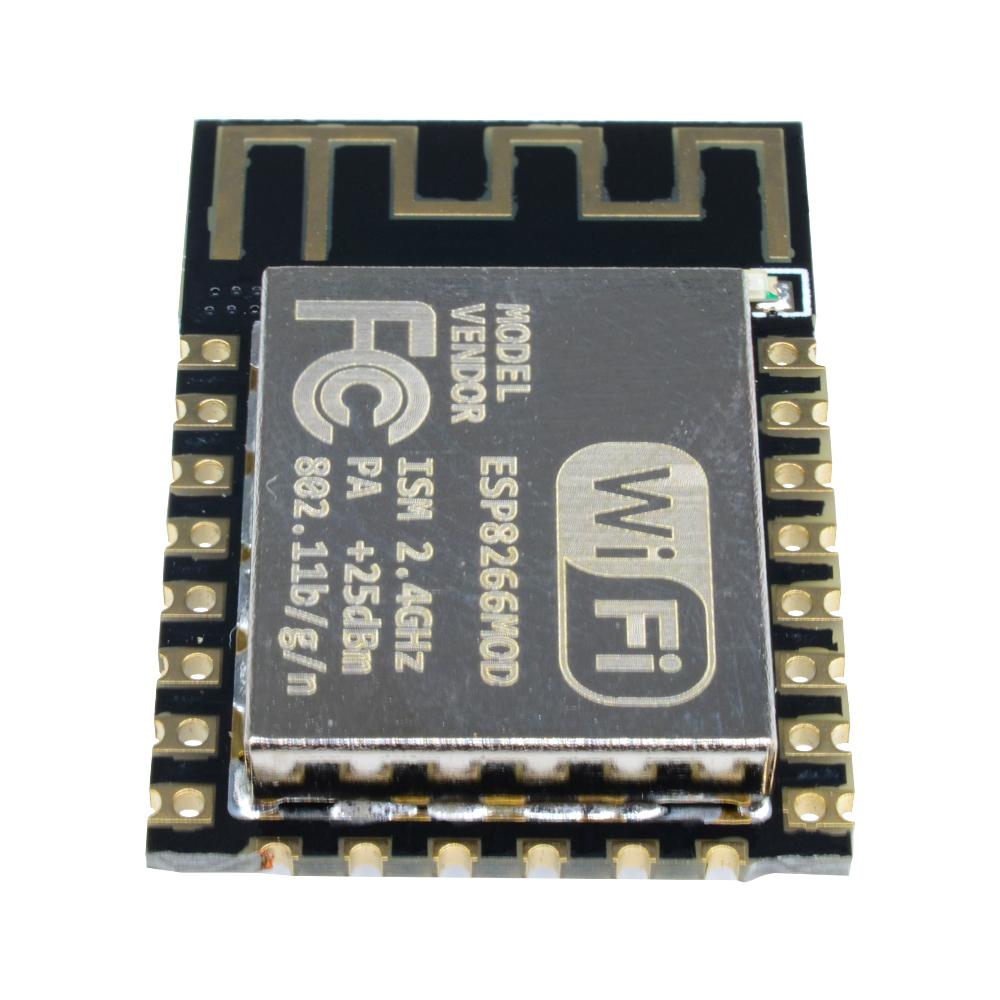

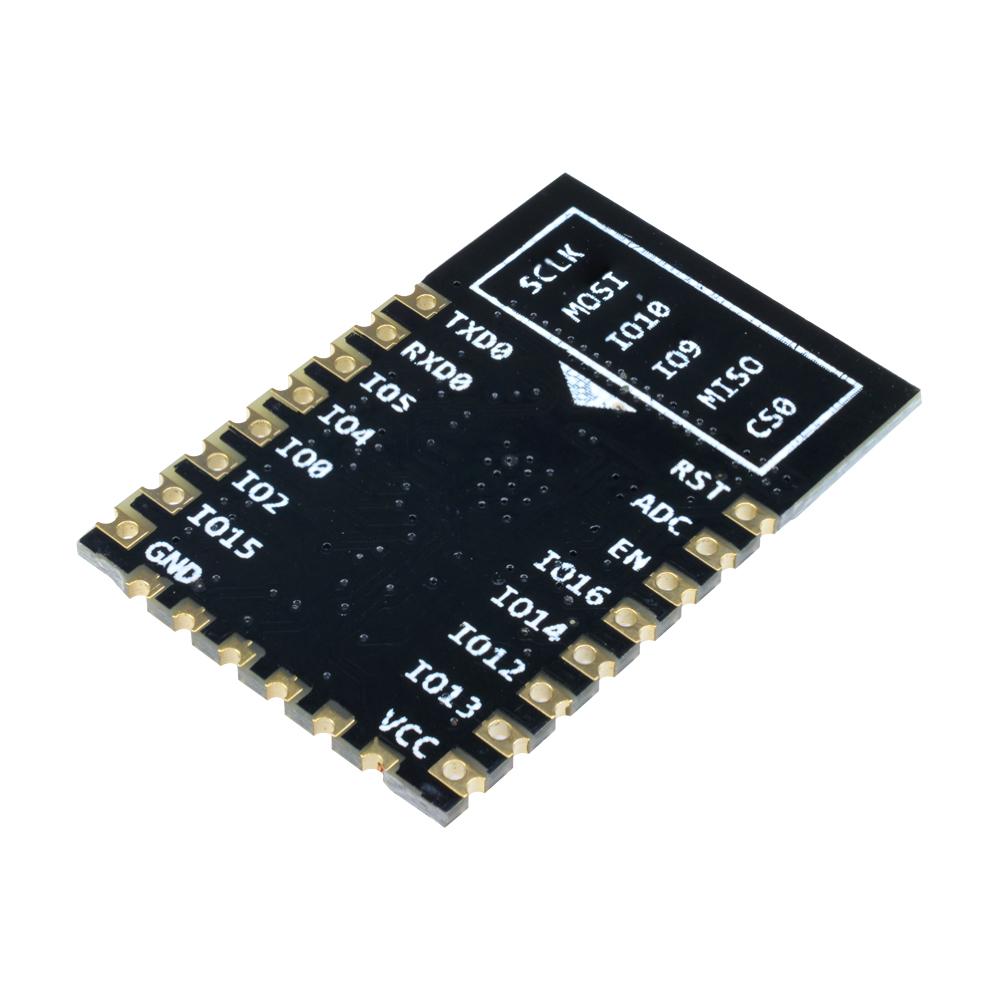

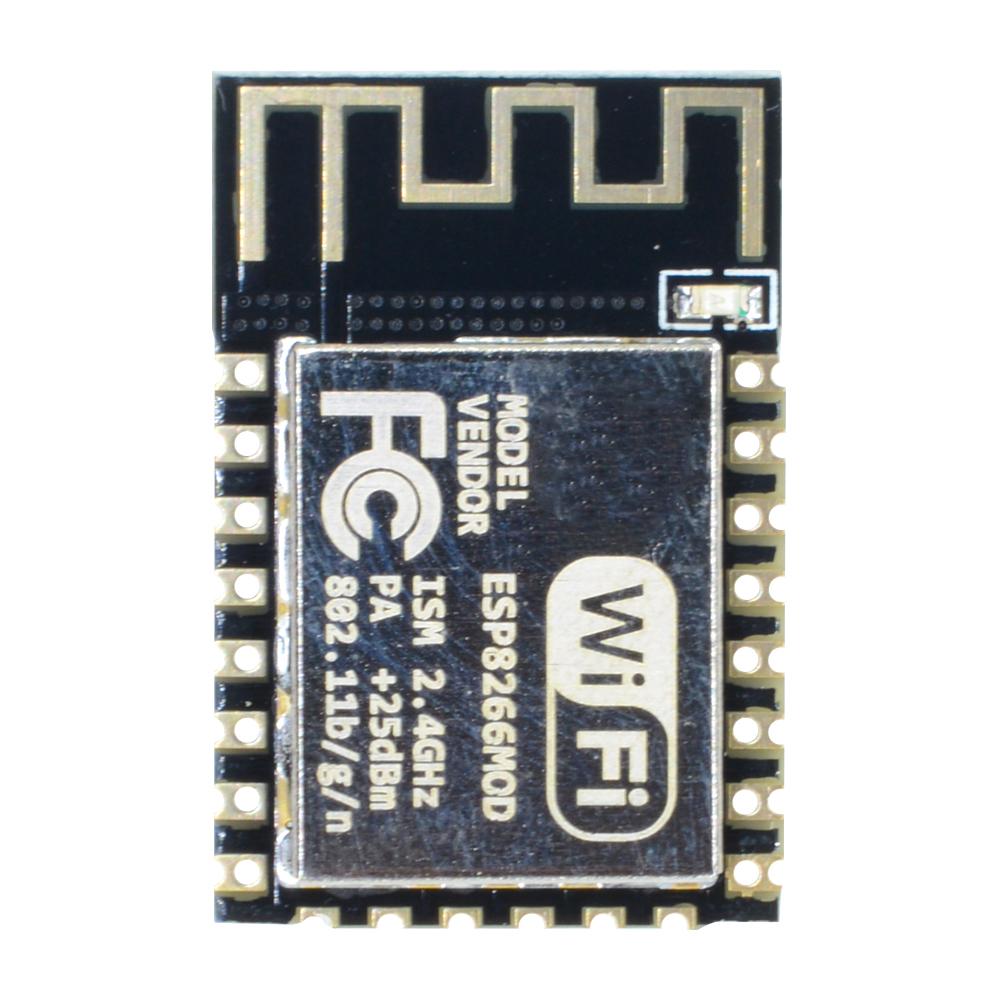

ESP8266 Serial WIFI Remote Wireless Control Wifi Module ESP-12FESP Development Board

High-concerned chemical : none Type : Module Brand Name : diymore Origin : Mainland China Condition : New

Product Features: ESP8266-12F adopts a complete peripheral circuit, four layer board technology, enhanced impedance matching, and better signal output. Both stability and anti-interference ability have been greatly improved. ESP8266-12F is fully compatible with the previous firmware, with six additional IO and SPI ports added to the ESP-12 for easier development and wider application. 3. Easy to use, developed based on the ESP8266 chip, the module integrates transparent transmission function and can be used immediately upon receipt. 4. Support serial port AT instruction set, users can access the network through the serial port. 5. Widely used in smart wearables, smart homes, home security, remote controls, automotive electronics, smart lighting, industrial Internet of Things and other fields.

Product Introduction: The ESP-12F module core processor ESP8266 integrates an ultra-low power 32-bit micro MCU in a smaller package, with 16 bit reduced mode, supporting clock frequencies of 80 MHz and 160 MHz, supporting RTOS, and integrating Wi Fi MAC/BB/RF/PA/LA. The ESP-12F WiFi module supports standard IEEE802.11 b/g/n protocols and a complete TCP/IP protocol stack. Users can use this module to add networking functionality to existing devices or build independent network controllers. ESP8266 is a high-performance wireless SOC that provides maximum practicality at the lowest cost, offering unlimited possibilities for embedding WiFi functionality into other systems. ESP8266 is a complete and self-contained WiFi network solution that can operate independently or be installed as a slave on other host MCUs. When ESP8266 is equipped with applications and serves as the only application processor in the device, it can be directly booted from external flash memory. The built-in cache memory is beneficial for improving system performance and reducing memory requirements. Another scenario is that when ESP8266 is responsible for wireless internet access and serves as a WiFi adapter, it can be added to any microcontroller based design. The connection is simple and easy, and only requires SPI/SDIO interface or I2C/UART interface. The powerful on-chip processing and storage capabilities of ESP8266 enable it to integrate sensors and other application specific devices through GPIO ports, achieving the lowest initial development and minimal system resource consumption during operation.

Product Features The smallest 802.11b/g/n Wi Fi SOC module Built in Tensilica L106 ultra-low power 32-bit micro MCU, supporting clock frequencies of 80 MHz and 160 MHz, and supporting RTOS Built in 1 channel 10 bit high-precision ADC Support UART/GPIO/ADC/PWM/IC interfaces Adopting SMD-22 packaging Integrated Wi Fi MAC/BB/RF/PA/LNA Supports multiple sleep modes, with deep sleep current as low as 20uA The maximum serial port speed can reach 4Mbps Embedded Lwip protocol stack Support STA/AP/STA+AP working mode One click distribution network Support local serial port upgrade and remote firmware upgrade (FOTA) The universal AT command can be quickly mastered Supports secondary development and integrates Windows and Linux development environments Supply voltage: 3.0V~3.6V Power supply current:>500mA Working temperature: -20 ℃~85 ℃ Storage environment: -40 ℃~85 ℃,<90% RH Size: Approximately 24 * 16 * 3mm

Product List: 1X module
