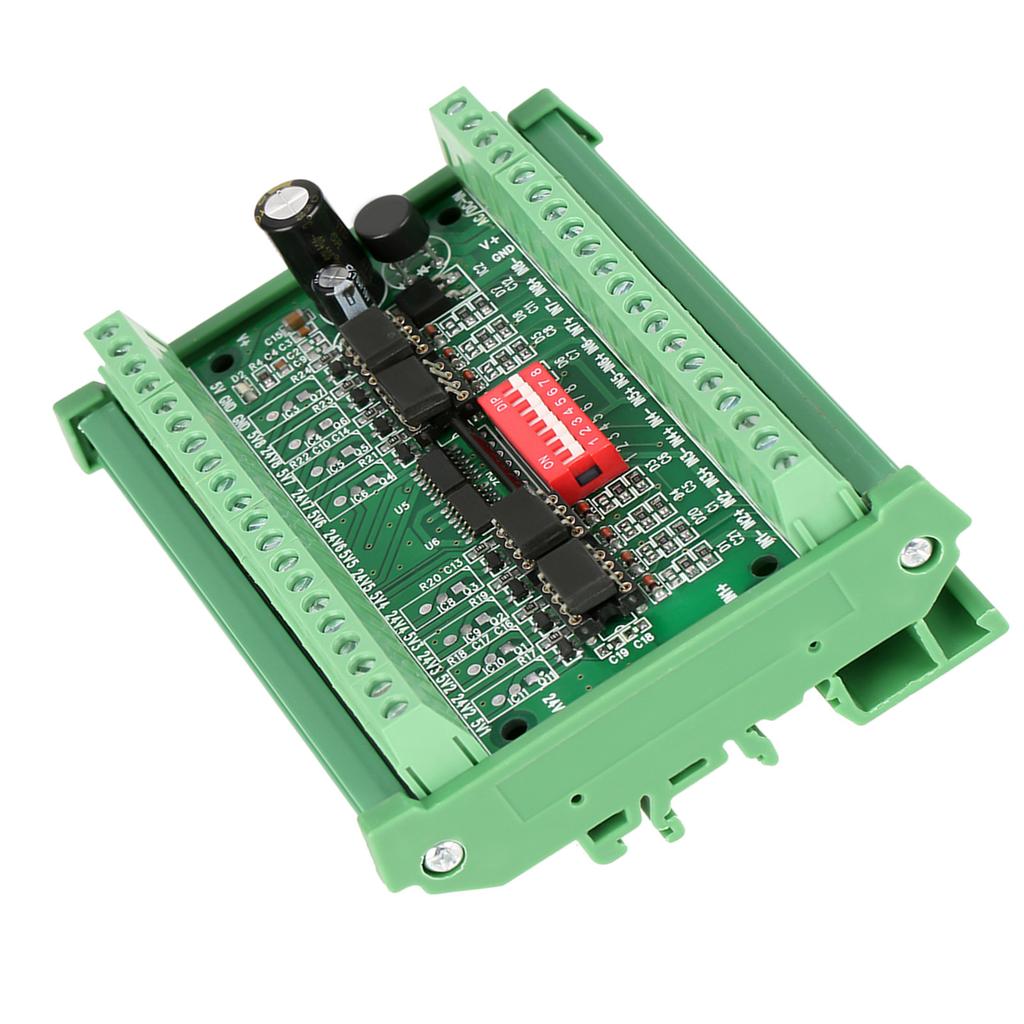

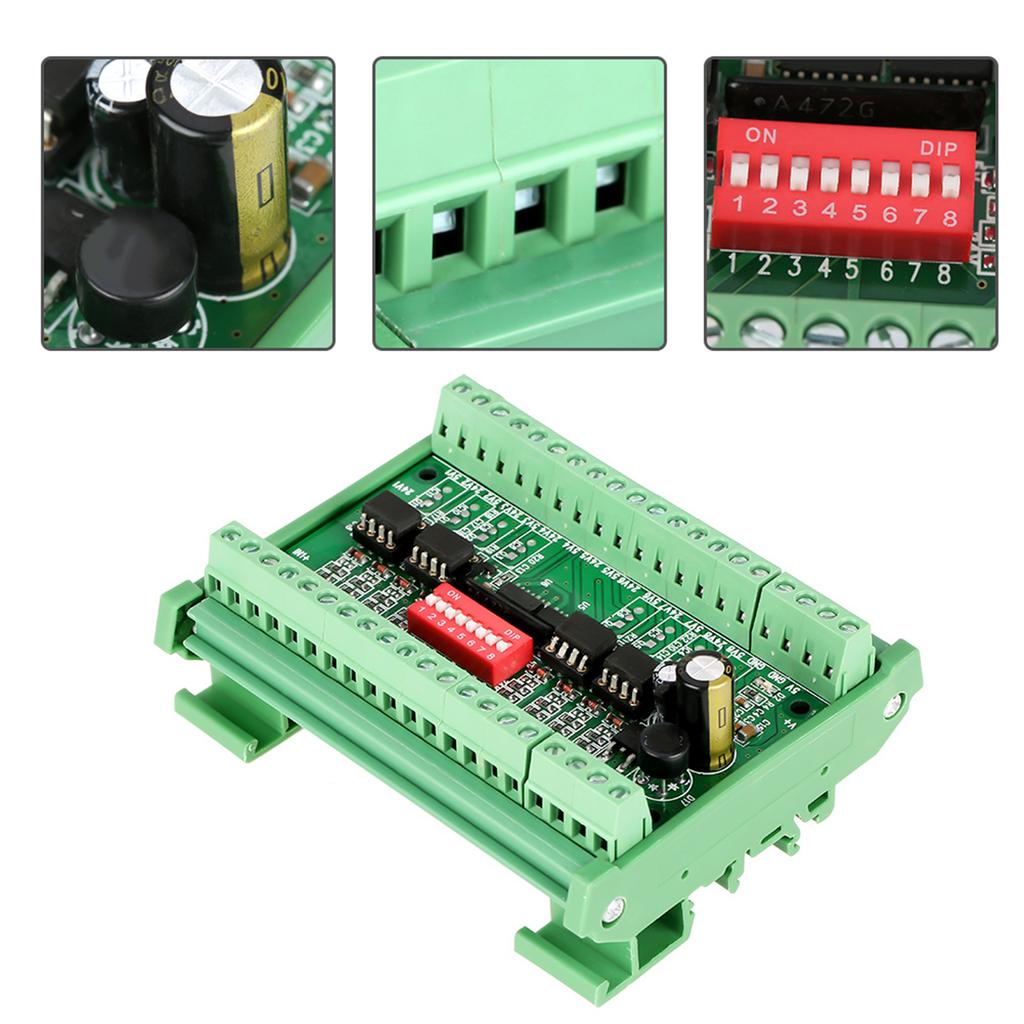

1pc 8-Channel NPN/PNP to NPN 5V/24V SquareWave Conversion Module Level Converter 10MHZ

Description: This level converter is mainly used for PLC or MCU interface matching with other circuits, external circuit level conversion circuit,or other level conversion between control circuits.This module can convert 8-channel signals at the same time, using isolation chip of 10MHZ bandwidth, which can effectively guarantee speed and integrity of . Features: The module can convert input 5V level to 24V level , or convert input 24V level to 5V level . It can also convert 5V to 5V, or 24V to 24V level, and isolate input and output through optocoupler, which can improves anti-interference ability of circuit. Input level can be set by DIP switch, 24V level output is NPN OC output, output current is 100mA. It has conversion and amplification circuit, good , strong driving ability. Compatible with a common-cathode or common-anode input connection, matching European and Japanese PLC interface standards. Compatible with AC/ input power supply interface, designed with power indicator light. When output is selected as 24V level, it is NPN OC output, with maximum 1A load capacity.24Voutput is OC output (NPN collector open circuit output), if you want to test output, it must add resistor, normally use a 10KR resistor. When converting to 24V level, the power supply of input should be 24V. When converting to 5V level, the power supply of input can be in between 7V-35V. You can use 4pcs M3 standoffs(not included) to install it. Specifications: Model: 8-5V24V-D Channel: 8-channel Input: NPN or PNP, 5V or 24V level squarewave Output: NPN 5V or 24V squarewave Size:Approx. 11 x 9 x 5cm/4.3 x 3.5 x 2in Weight: 170g(approx.) Switch SW1 SW2 SW3 SW4 SW5 SW6 SW7 SW8 Input 5V Level ON ON ON ON ON ON ON ON Input 24V Level OFF OFF OFF OFF OFF OFF OFF OFF Package Includes: 1 x Level Converter Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
